Fig. 3

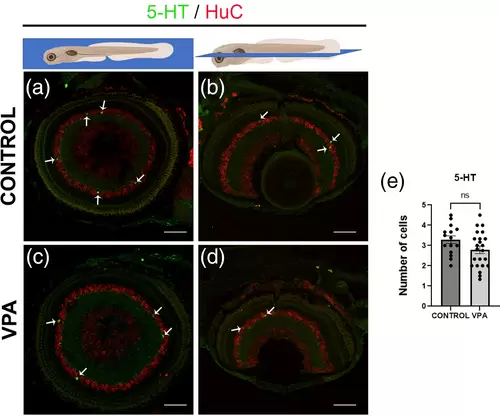

Serotonergic neurons in the retina of larvae zebrafish at 8-dpf. (a, d) Immunostaining for 5-HT (green) in sagittal and horizontal sections of larval (8-dpf) retinae. 5-HT positive cells (green) are seen in the inner nuclear layer of the retina in both VPA-treated and control larvae in a similar distribution. (e) Quantification of the number of cells per section showed no statistical differences between treated animals and controls. Neurons were counterstained with HuD/HuC label (red). Data are expressed as mean ± SEM, n = 5 per group, *p-value <0.05. 5-HT, serotonin. Scale bar 50 μm. |
