Fig. 7

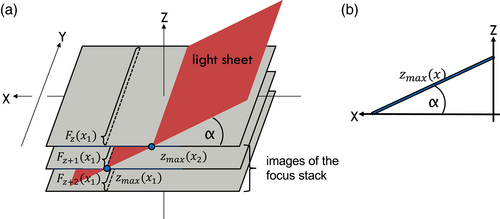

Determination of the beam tilt α in the xz-plane. (a) Three selected image planes from the z-focus stack. The light sheet intersects the image stack at different positions x_i. These positions are designated as

z_{\max} (x_{i})

. (b) Determination of α by fitting a straight line to the measured

z_{\max} (x_{i})
