Fig. 5

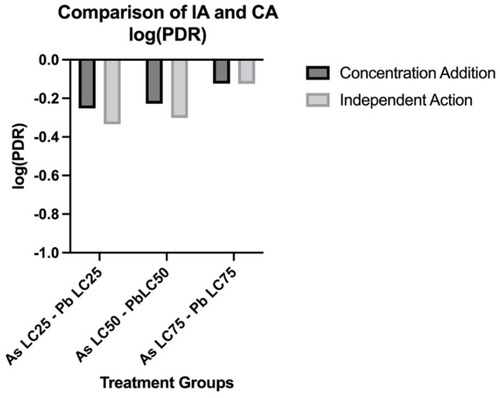

Comparison of predicted lethality using the Independent Action (IA) and Concentration Addition (CA) models. The log of the prediction deviation ratios (PDR) of mixtures for the CA and IA models. N = 3 biological replicates for each treatment group with 50 subsamples per each treatment group.
