FIGURE 4

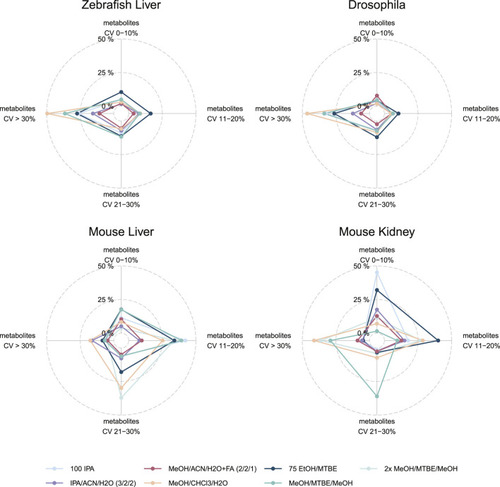

Variability of extraction procedures across all sample types and model organisms. Indicated by color are the different extraction protocols used. The CV% was generated based on the triplicate analyses. For each of the CV% categories the percentage of the total 630 metabolites. Note that 2xMeOH/MTBE/MeOH was only used for mice sample types. Alternative visualizations of the CV% and MAD are shown in the (Supplementary Figure S3, S4).
