FIGURE 2

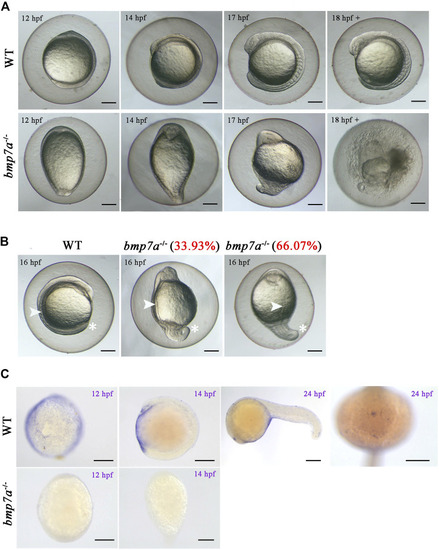

Observation of the homozygous lethal phenotype and gene expression in bmp7a embryos. (A) Morphological features of the wild-type and bmp7a^-/- embryos at 12 hpf, 14 hpf, 17 hpf and after 18 hpf. (B) Morphological features of the wild-type and bmp7a^-/- embryos at 16 hpf. The proportion of mutant embryos with different morphology in mutant embryos at 16 hpf was shown in red font. (C) Whole-mount in situ hybridization of the bmp7a gene at 12 hpf, 16 hpf wild-type and bmp7a^-/- embryos, and whole-mount in situ hybridization of the bmp7a at 24 hpf wild-type embryos. Scale bars, 200 μm.

Expression Data

Genes:	bmp7a gh1 ghra ghrb igf1 igf1ra igf1rb igf2a igf2b igf2r
Fish:	WT bmp7a^{zf3598/zf3598} bmp7b^{zf3599/zf3599}
Anatomical Terms:	head tail bud trunk ventral side whole organism
Stage Range:	5-9 somites to Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	bmp7a^{zf3598/zf3598} bmp7b^{zf3599/zf3599}
Observed In:	dorsal/ventral pattern formation head somite somite ventral side tail bud trunk ventral side whole organism yolk
Stage Range:	5-9 somites to Adult

Phenotype Detail
