FIGURE

Fig. 1.

ID

ZDB-FIG-220305-15

Publication

Baronio et al., 2021 - Abnormal brain development of monoamine oxidase mutant zebrafish and impaired social interaction of heterozygous fish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 1.

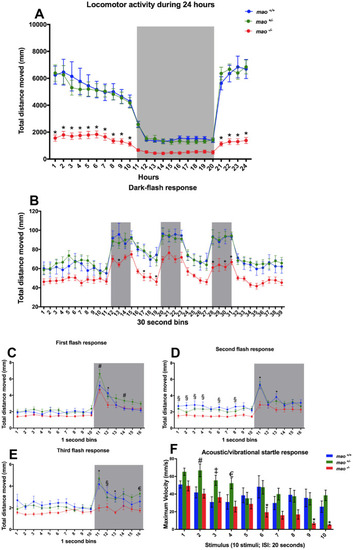

Behavioral phenotype of mao mutants. (A) mao^−/− larvae were hypoactive during diurnal and nocturnal (gray shaded area) locomotor activity tracking at 6 dpf. n=16 for mao^+/+, n=16 for mao^+/− and n=15 for mao^−/−. (B) Larvae at 6 dpf were exposed to alternating 2 min periods of light and darkness (gray shaded areas), with three periods of darkness in total. n=15 mao^+/+ and n=16 for mao^+/− and mao^−/−. (C-E) Analysis of the larval response to sudden darkness [first (C), second (D) and third (E) flash response] in 1 s bins. Gray shaded areas indicate periods of darkness. (F) Mean values for maximum velocity during ten acoustic/vibrational stimuli with a 20 s interstimulus interval (ISI). n=15 for mao^+/+, n=16 for mao^+/− and n=12 for mao^−/−. Two-way ANOVA followed by Tukey's post hoc test was used for statistical analysis. ^#P<0.05 (mao^+/− versus mao^+/+ and mao^−/−), *P<0.05 (mao^+/+ and mao^+/− versus mao^−/−), ^§P<0.05 (mao^+/+ versus mao^−/−), ^€P<0.05 (mao^+/− versus mao^−/−), ^‡P<0.05 (mao^+/− versus mao^+/+).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	mao^{sa31732/sa31732} mao^sa31732/+
Conditions:	altered light dark cycle lighting conditions vibration
Observed In:	startle response swimming behavior
Stage:	Day 6

Phenotype Detail
