Fig 7

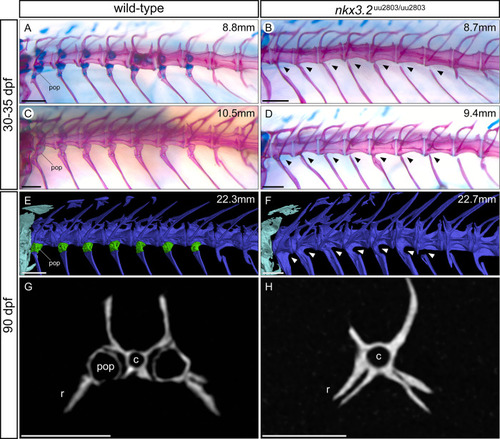

(A-F) Dorsolateral views of rib-bearing vertebrae in 30–35 dpf, and 90 dpf wild-type and nkx3.2 mutant zebrafish. (A-D) Cartilage- and bone- stained juvenile zebrafish, (E, F) μCT models. (G, H) μCT virtual transverse cross-sections of wild-type and nkx3.2 mutant rib-bearing vertebrae at 90 dpf. The measurements in mm refer to standard length (SL). Arrowheads in (B, D, F) indicate the absence of parapophyses on the rib-bearing vertebrae. Parapophyses (pop) are highlighted in green in (E). c–centrum, r–rib. Scale bars: 200μm(A-D), 500μm (E-H).
