Fig. 4

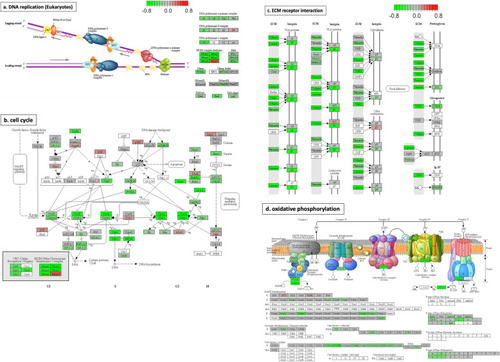

Diagrams for four significantly-changed KEGG pathways plotted using pathview [35]. a DNA replication. b cell cycle. c ECM receptor interaction. d oxidative phosphorylation. Intensity of colour represents gene log₂FC with downregulation in green and upregulation in red. Pathway maps are displayed with copyright permission from KEGG
