Fig. 5

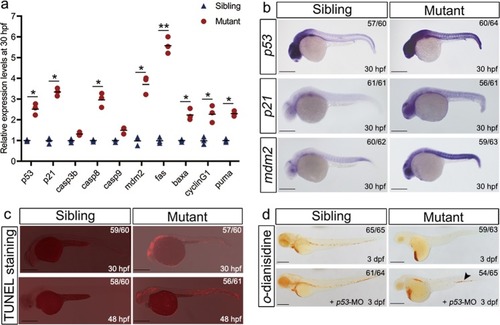

Upregulation of p53 activity partially contributed to the erythroid phenotype in <italic>rpl18</italic> mutants.

a Transcript quantification of p53 and p53 related genes were verified by qRT-PCR. All the p53 related genes were highly expressed in rpl18 mutants at 30 hpf (N = 3), *P < 0.05. **P < 0.01. b WISH showed that p53, p21, and mdm2 expression was elevated in rpl18 mutants at 30 hpf (N = 3). c In situ cell death staining result showed that the signal of apoptosis can be observed thought the body at 30 and 48 hpf (N = 4). d An increase of hemoglobin level appeared in mutants at 3 dpf after p53 knockdown (N = 3). Arrowhead points to the recovery of erythrocytes. All scale bars represent 250 μm.
Expression Data
Genes: (all 8)
Fish:
Anatomical Term:
Stage: Prim-15

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagent:
Observed In:
Stage Range: Prim-15 to Protruding-mouth

Phenotype Detail
