Fig 6

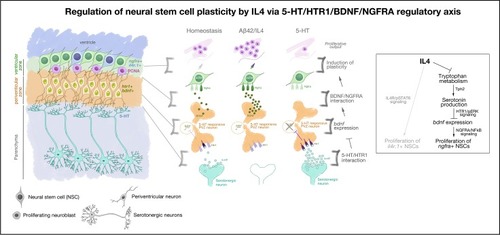

Schematic view of the findings on how neuron-glia crosstalk regulates Alzheimer-induced neurogenesis in adult zebrafish brain.

Aβ42, amyloid-beta42; bdnf, brain-derived neurotrophic factor; htr1, 5-hydroxytryptamine receptor 1; IL4, interleukin-4; NFkB, nuclear factor 'kappa-light-chain-enhancer' of activated B-cells; NGFRA, nerve growth factor receptor A; NSC, neural stem cell; PCNA, proliferating cell nuclear antigen; pERK, hosphorylated extracellular signal-regulated kinase; pSTAT6, phosphorylated signal transducer and activator of transcription 6, interleukin-4 induced; PVZ, periventricular zone; ngfra, nerve growth factor receptor A; Tph2, tryptophan hydroxylase; 5-HT, serotonin.
