Fig. S12

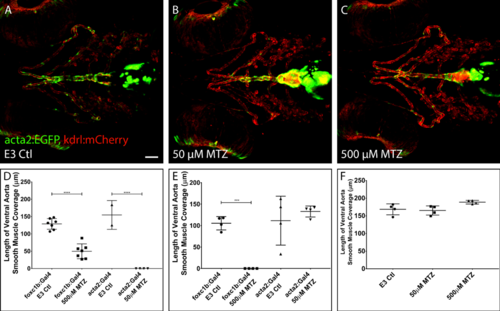

Treatment of Metronidazole (MTZ) does not affect vessel patterning or vSMC coverage along the ventral aorta in embryos.  A-C) 4 dpf acta2:EGFP, kdrl:mCherry E3 control embryos lacking the NTR construct (A) show that treatment with MTZ does not affect vascular patterning or development of vSMC when using the same doses for acta2:Gal4 (B) or foxc1b:Gal4 (C) ablation. n = 4 embryos per panel. D) Quantification of vSMC coverage from data in Figure 9 A-D, using live transgenics (foxc1b:Gal4; UAS-NTR:mCherry or acta2:Gal4; UAS-NTR:mCherry) at 4 dpf. E) Quantification of vSMC coverage in Figure 9 E-H, using acta2 mRNA in situ hybridization. F)  Quantification of vSMC coverage using live transgenics lacking NTR construct (acta2:EGFP, kdrl:mCherry). Data points in D-F represent individual embryos. *** = p < 0.001, ANOVA with Sidak’s multiple comparisons test. Scale bar represents 50 µm.
