FIGURE

Fig. 4

ID
ZDB-FIG-190814-21
Publication
Pei et al., 2018 - Guided genetic screen to identify genes essential in the regeneration of hair cells and other tissues
Other Figures
All Figure Page
Back to All Figure Page
Fig. 4

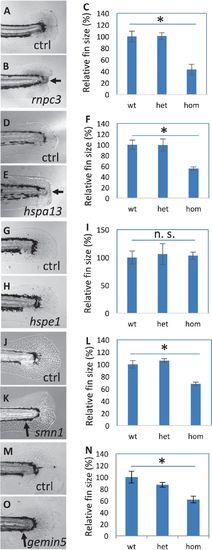

Fin regeneration in the mutants affecting hair cell regeneration. ac Regenerated fins in the control (a) and rnpc3la028632 (b), and the quantification of the fin areas (c). dfRegenerated fins in the control (d) and hspa13hg78 mutants (e), and the quantification of the fin areas (f). gi Regenerated fins in the control (g) and hspe1hg77 mutant (h), and the quantification of the fin areas (i). jl Regenerated fins in the control (j) and smn1fh299 mutant (k), and the quantification of the fin areas (l). mo Regenerated fins in the control (m) and gemin5hg80 mutant (n), and the quantification of the fin areas (o). Arrows in b and e point to a lack of caudal fin fold in rnpc3 and hspa13 mutants. Arrows in k and o point to a lack of ventral pigment gap in smn1 and gemin5 mutants. Graphs are generated by analyzing more than eight embryos per genotype. Error bars show the s.e.m. There was no difference in the regeneration between wild-type and heterozygotes for all the mutations, so control (Ctrl) is used to represent both. There is a significant difference between the wild-type and mutant embryos for mutations in rnpc3, hspa13, smn1, and gemin5 (p < 0.05 for all), but not for mutation in hspe1 (n. s.)



Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Observed In:
Stage: Day 5

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ NPJ Regen Med
