ZFIN Figure: Lopez-Baez et al., 2018, Fig. 6

ZFIN ID: ZDB-FIG-180613-14

ZFIN ID: ZDB-FIG-180613-14

Lopez-Baez et al., 2018 - Wilms Tumor 1b defines a wound-specific sheath cell subpopulation associated with notochord repair.. eLIFE 7 Full text @ Elife

ADDITIONAL FIGURES

EXPRESSION / LABELING:

Genes:	EGFP KillerRed
Fish:	mitfa^w2/+; mpv17^a9/+; hu7478Tg; li2Tg/+
Condition:	perforation: notochord
Anatomical Term:	notochord regenerating tissue
Stage Range:	Protruding-mouth to Day 6

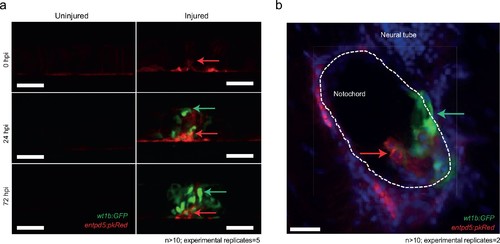

Fig. 6

Distinct and closely associated wt1b and entpd5a subpopulations emerge at the damage site.

(a) Live-imaging at the site of notochord injury in Tg(wt1b:gfp; entpd5a:dkRed) larvae. Expression of wt1b:gfp and entpd5a:pkRed at site of damage (green arrows and red arrows respectively) in injured and uninjured fish. n > 10; experimental replicates = 5. Scale bar: 50 µm. (b) Cryo-section of the injured area confirms distinct wt1b:gfp and entpd5a:dkRed subpopulations at site of damage. n > 10; experimental replicates = 2. Scale bar: 20 µm.

Gene Expression Details

Gene	Fish	Conditions	Stage	Qualifier	Anatomy	Assay
EGFP	mitfa^w2/+; mpv17^a9/+; hu7478Tg; li2Tg/+	standard conditions	Protruding-mouth	Not Detected	notochord	IFL
			Day 4	Not Detected	notochord	IFL
			Day 6	Not Detected	notochord	IFL
	mitfa^w2/+; mpv17^a9/+; hu7478Tg; li2Tg/+	perforation: notochord	Protruding-mouth		notochord regenerating tissue	IFL
			Day 4		notochord regenerating tissue	IFL
			Day 6		notochord regenerating tissue	IHC
			Day 6		notochord regenerating tissue	IFL
KillerRed	mitfa^w2/+; mpv17^a9/+; hu7478Tg; li2Tg/+	standard conditions	Protruding-mouth	Not Detected	notochord	IFL
			Day 4	Not Detected	notochord	IFL
			Day 6	Not Detected	notochord	IFL
	mitfa^w2/+; mpv17^a9/+; hu7478Tg; li2Tg/+	perforation: notochord	Protruding-mouth	Not Detected	notochord	IFL
			Day 4		notochord regenerating tissue	IFL
			Day 6		notochord regenerating tissue	IHC
			Day 6		notochord regenerating tissue	IFL

Antibody Labeling Details No data available

Phenotype Details No data available
