Fig. S5

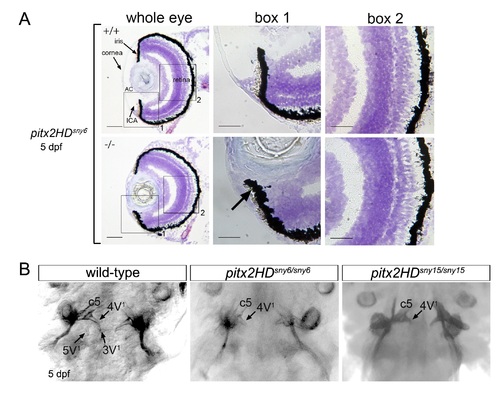

Pitx2HD mutants develop eye and tooth defects associated with ARS. (A) Cryosections of the eye from 5 dpf wild-type (+/+) or pitx2HD^sny6/sny6 (-/-) fish stained with crystal violet. AC=anterior chamber; ICA=iridocorneal angle. Scale bars=50 µm. Box1 and Box2 are zoom-in views of boxed structures. Retina organization appeared similar in wild-type and pitx2HD mutant fish. (B) Ventral views of alizarin red staining of teeth at 5 dpf wild-type, pitx2HD^sny6/sny6 and pitx2HD^sny15/sny15 fish.
