ZFIN ID: ZDB-FIG-160708-9
He et al., 2016 - Synergy between loss of NF1 and overexpression of MYCN in neuroblastoma is mediated by the GAP-related domain. eLIFE   5 Full text @ Elife
ADDITIONAL FIGURES
PHENOTYPE:
Fish:
Observed In:
Stage: Adult

Fig. 7

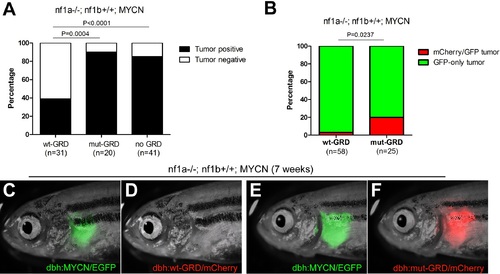

GRD domain is required for the tumor suppressor function of nf1 in MYCN-driven neuroblastoma tumorigenesis.

(A) Tumor penetrance of stable transgenic zebrafish with the genotypes of nf1a-/-;nf1b+/+;GFP;wt-GRD;mCherry (n = 31), nf1a-/-;nf1b+/+;GFP;mut-GRD;mCherry (n = 20) and nf1a-/-;nf1b+/+;GFP;mCherry (n = 41) at the age of 12 weeks. (B) nf1a-/-;nf1b+/+;MYCN;GFP fish injected with dbh:wt-GRD;dbh:mCherry (n = 58) showed a significantly lower mCherry+ mosaic tumor rate compared with the sibling fish injected with dbh:mut-GRD;dbh:mCherry (n = 25) at the age of 7 weeks (Fisher’s exact test), indicating the tumor suppression function of the NF1 GRD domain.Most early tumors arose in nf1a-/-;nf1b+/+;MYCN;GFP fish injected with dbh:wt-GRD; dbh:mCherry only expressed GFP (C) but not mCherry fluorescent protein (D). A significant subset of early tumors arose in nf1a-/-;nf1b+/+;MYCN;GFP fish injected with dbh:mut-GRD; dbh:mCherry did express both GFP (E) and mCherry (F).

Gene Expression Details No data available
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
nf1ap301/p301; zdf16Tg standard conditions Adult interrenal gland neuroblastoma increased occurrence, abnormal
nf1ap301/p301; zdf16Tg; zdf23Tg standard conditions Adult interrenal gland neuroblastoma increased occurrence, abnormal
nf1ap301/p301; zdf16Tg; zdf24Tg standard conditions Adult interrenal gland neuroblastoma increased occurrence, ameliorated
