Fig. 4

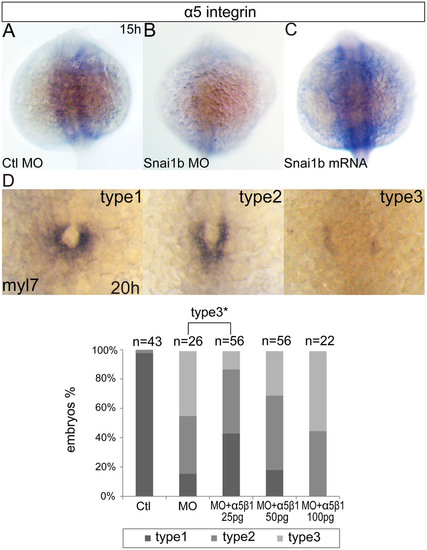

In situ hybridization for indicated genes. (A–C): Expression pattern of α5 integrin in different embryos at 15hpf, dorsal view. (D): different types of phenotypes displayed in injected embryos at 20hpf. Graph shows phenotypic ratios of injected embryos at the same stage. Percentage of embryos of type 3 between embryos with snai1b MO and those with both snai1b MO and 25pg α5β1 integrin protein was statistically significant (P = 0.023, t-test). Ctl means Ctl MO, MO means snai1b MO.

Expression Data

Gene:	itga5
Fish:	AB AB + MO1-snai1b
Knockdown Reagent:	MO1-snai1b
Anatomical Term:	anterior lateral plate mesoderm
Stage:	10-13 somites

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
