FIGURE

Fig. S3

ID
ZDB-FIG-140617-1
Publication
Schaffer et al., 2014 - CLP1 Founder Mutation Links tRNA Splicing and Maturation to Cerebellar Development and Neurodegeneration
Other Figures
All Figure Page
Back to All Figure Page

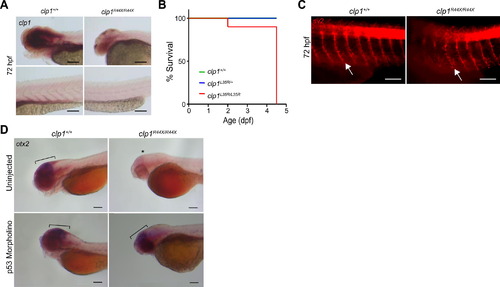

Fig. S3

clp1 Mutant Zebrafish Showed Reduced Lifespan, Motor Neuron Fragmentation, and p53-Mediated Neural Loss, Related to Figure 3

(A) In situ hybridization showed clp1 expressed in developing brain and motor neurons of clp1+/+ zebrafish at 72 hours postfertilization (hpf) but not clp1R44X/R44X.

(B) Lifespan of clp1L35R/L35R mutant zebrafish is reduced to 4.5 days compared to heterozygous or WT clutchmates.

(C) Sv2 immunostaining showed motor neuron fragmentation in clp1R44X/R44X zebrafish compared to control clutchmates at 72 hpf, concordant with neural degeneration.

(D) In situ hybridization at 72 hpf for otx2 in clp1+/+ and clp1R44R/R44X zebrafish injected with tp53 antisense morpholino, or uninjected, showed tp53 knockdown restores otx2 expression in mutant zebrafish to near WT levels. Black scale bar, 100 µm, white scale bar, 50 µm.

Expression Data
Genes:
Antibody:
Fish:
Knockdown Reagent:
Anatomical Terms:
Stage: Protruding-mouth

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Observed In:
Stage Range: Protruding-mouth to Day 5

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cell, 157, Schaffer, A.E., Eggens, V.R., Caglayan, A.O., Reuter, M.S., Scott, E., Coufal, N.G., Silhavy, J.L., Xue, Y., Kayserili, H., Yasuno, K., Rosti, R.O., Abdellateef, M., Caglar, C., Kasher, P.R., Cazemier, J.L., Weterman, M.A., Cantagrel, V., Cai, N., Zweier, C., Altunoglu, U., Satkin, N.B., Aktar, F., Tuysuz, B., Yalcinkaya, C., Caksen, H., Bilguvar, K., Fu, X.D., Trotta, C.R., Gabriel, S., Reis, A., Gunel, M., Baas, F., Gleeson, J.G., CLP1 Founder Mutation Links tRNA Splicing and Maturation to Cerebellar Development and Neurodegeneration, 651-63, Copyright (2014) with permission from Elsevier. Full text @ Cell
