Fig. 4

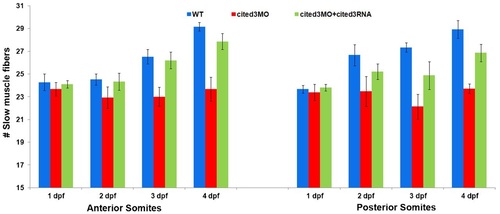

The number of slow myofibers is reduced in cited3 morphants starting at 3 dpf.

The number of slow fibers was counted on whole mount embryos on one hemisegment from 10th-12th somites in the anterior region and 16th-18th somite in the posterior region of embryos at 1-4 dpf. Slow myofiber number is reduced significantly starting from 3 dpf in the morphant compared to WT (P-value<2×10-2 at 3 dpf and P-value<2×10-3 at 4 dpf) and was restored when cited3RNA was coinjected (P-value<4×10-2 at 3 dpf and P-value<5×10-3 at 4 dpf).
Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagents:
Observed In:
Stage Range: Protruding-mouth to Day 4
