Fig. 8

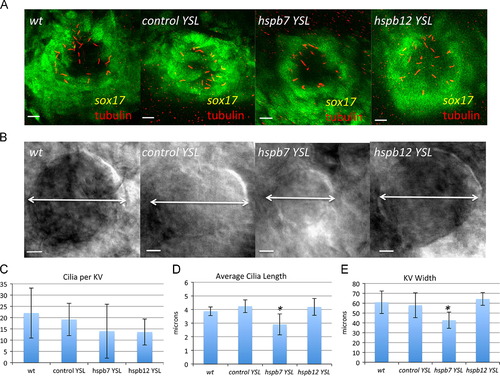

Hspb7 is required in Kupffer′s vesicle for normal morphogenesis. (A, B) Confocal stack and DIC images, respectively, of the KV in wildtype and morphant embryos derived from the sox17:gfp reporter strain, as indicated at the 8–10 somite stage. In this case, embryos were injected with MOs at the 1K stage, and selected for YSL-specific deposition using a reporter dye. Embryos in (A) were stained with anti-acetylated tubulin antibody (red). The bars represent 10 µm. (C–E) Quantification of KV phenotypes noting average cilia number (C), cilia length (D) or KV width (E). In each sample n was at least five embryos. The asterisk indicates p<0.05 according to Student′s t-test in comparison to the standard control group.
