FIGURE

Fig. 8

ID
ZDB-FIG-130123-28
Publication
Bosco et al., 2013 - Development of hypothalamic serotoninergic neurons requires Fgf signalling via the ETS-domain transcription factor Etv5b
Other Figures
All Figure Page
Back to All Figure Page
Fig. 8

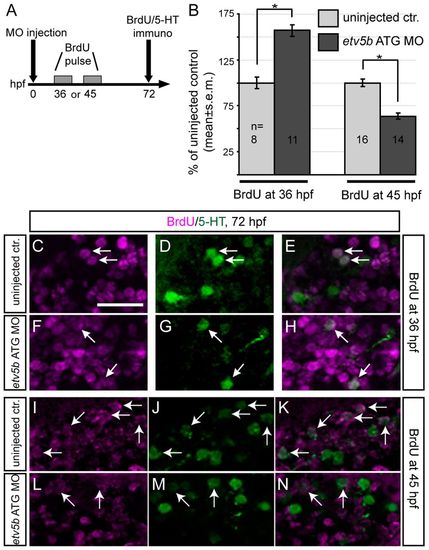

Etv5b is required to keep 5-HT progenitors in a proliferative state and to maintain the pool of 5-HT progenitors. (A) The procedure for analysis of fate at 72 hpf of hypothalamic 5-HT progenitors labelled with BrdU at 36 or 45 hpf. (B) The proportion of 5-HT/BrdU double-positive cells among 5-HT-positive cells in the intermediate/posterior (i./p.) clusters at 72 hpf after a single BrdU pulse at 36 or 45 hpf expressed as percentage of control. These observations suggest that the 5-HT progenitor population, following a transient cell cycle delay, is depleted in etv5b morphants, resulting in an overall decrease in the number of 5-HT neurons at 72 hpf. n, total number of embryos analysed for each experiment. *Pd0.05. (C-N) Confocal optical sections of coronal cryosections from etv5b morphants or uninjected controls. Both were exposed to a single pulse of BrdU at 36 (C-H) or 45 (I-N) hpf and processed for BrdU and 5-HT double immunohistochemistry at 72 hpf. Sections are at the level of the i./p. cluster of 5-HT cells of the hypothalamus. Arrows indicate examples of double-positive cells. Scale bar: 25 μm.

Expression Data
Antibody:
Fish:
Knockdown Reagent:
Anatomical Term:
Stage: Protruding-mouth

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
