Fig. 1

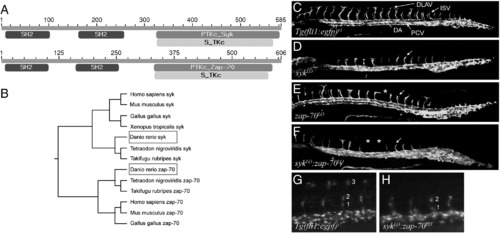

The zebrafish orthologs of syk and zap-70 mediate angioblast migration to form the ISVs. (A) Zebrafish syk and zap-70 have similar domain structures with N-terminal SH2 domains, and a C-terminal tyrosine kinase domain (PTK). (B) Alignment of the nucleotide sequences of syk and zap-70 with orthologs in other species shows a clear grouping of zebrafish syk with the other syk orthologs, and zap-70 with the other zap-70 orthologs. (C) At 30 hpf, ISVs in Tg(fli1a:EGFP)y1 embryos have reached the dorsal aspect of the somite and are contributing to the DLAV in wild-type embryos. (D–E) Injection of a low dose of syk morpholino (sykLO, D) or zap-70 morpholino (zap-70LO, E) results in delayed (arrows) or completely suppressed (asterisk) angioblast migration to form the ISVs. (F) Co-injection of low doses of both morpholinos results in a more severe stalling and suppression of angioblast migration (sykLO:zap-70LO). (G–H) Tg(fli1a:EGFP)y7 embryos with endothelial-expressed nuclear GFP show fewer cells in the ISVs of sykLO:zap-70LO embryos. Anterior is to the left in all embryos. DA: dorsal aorta; PCV: posterior cardinal vein; ISV: intersegmental vessel; DLAV: dorsal longitudinal anastomotic vessel; hpf: hours post fertilization.

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagents:
Observed In:
Stage: Prim-15

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 340(1), Christie, T.L., Carter, A., Rollins, E.L., and Childs, S.J., Syk and Zap-70 function redundantly to promote angioblast migration, 22-29, Copyright (2010) with permission from Elsevier. Full text @ Dev. Biol.
