Fig. 4

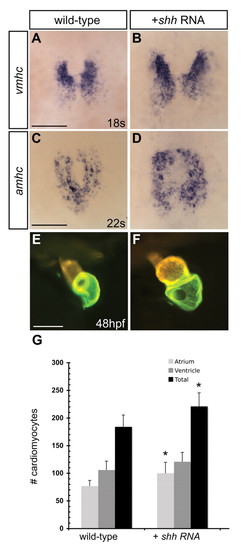

Increased Hh signaling expands ventricular and atrial populations. (A-D) Dorsal views, anterior towards the top. (A,B) vmhc expression at the 18-somite stage and (C,D) amhc expression at the 22-somite stage are expanded in shh-injected embryos. (E,F) At 48 hpf, shh-injected embryos often exhibit enlarged hearts, as indicated by MF20/S46 immunofluorescence. Scale bars: 100 μm. (G) Quantification of cardiomyocyte number in wild-type and shh RNA-injected embryos at 52 hpf. Values represent the mean cell number for each category (±s.d.). Asterisks indicate statistically significant differences from wild type (P≤0.0005).

Expression Data
Genes:
Antibodies:
Fish:
Condition:
Anatomical Terms:
Stage Range: 14-19 somites to Long-pec

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Observed In:
Stage: Long-pec

Phenotype Detail
