FIGURE

Fig. 12

ID
ZDB-FIG-080804-21
Publication
Budi et al., 2008 - Embryonic requirements for ErbB signaling in neural crest development and adult pigment pattern formation
Other Figures
(all 11)
All Figure Page
Back to All Figure Page
Fig. 12

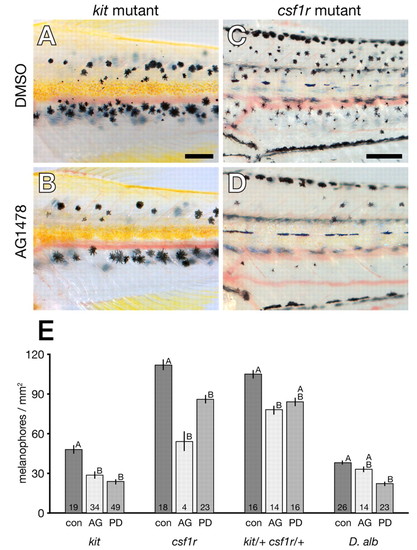

Cryptic ErbB requirements during metamorphosis revealed by sensitized genetic backgrounds. (A) kit mutants (reared with DMSO) develop fewer metamorphic melanophores than wild type. (B) kit mutants reared during metamorphosis with AG1478 have an additional metamorphic melanophore deficiency. (C) csf1r mutants have similar numbers of melanophores to wild type through the middle metamorphic stage shown (Parichy et al., 2000b). (D) csfr1r mutants reared in AG1478 during metamorphosis exhibit a sharp reduction in melanophore numbers, as well as increased larval mortality (not shown). (E) Melanophore densities (±1 s.e.) are moderately or significantly reduced in sensitized backgrounds when treated with AG1478 (AG) or PD158780 (PD) compared with DMSO-only controls (con). Shared letters above bars indicate treatments that are not significantly different from one another (P>0.05) within each genetic background. Treatment sample sizes are shown at the base of each bar. Scale bar: in A, 300 μm for A,B; in C, 300 μm for C,D.

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Condition:
Observed In:
Stage: Days 14-20

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
