Fig. 2

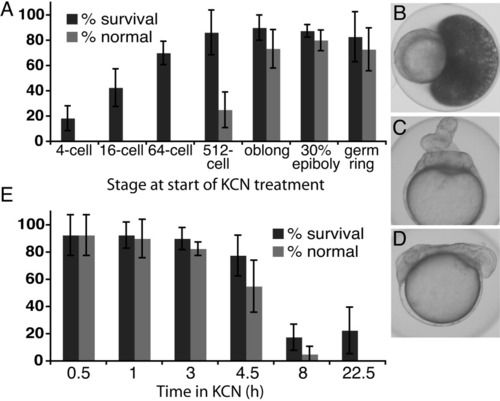

Recovery of pre-midblastula transition (MBT) embryos from arrest depends on division number and duration of arrest. A: Embryos at the indicated stage (x-axis) were placed in KCN for 24 hr and the percent of embryos that survived treatment and recovered normally 48 hr after washing of KCN was assessed. B: Representative example of the extrusion of yolk observed in embryos incubated in KCN for 24 hr beginning at the four-cell stage and then removed from KCN. C,D: Examples of the developmental abnormalities observed in embryos treated with KCN for 24 hr beginning at 64 cells, after 24 hr of recovery following removal of KCN. E: Four-cell embryos were placed in KCN for the indicated duration (x-axis), allowed to recover for 48 hr, and the percent survival and percent of embryos recovering normally was assessed. All error bars are ±SD.
