The 4EHP and TRS interaction is critical for translation initiation of mRNAs required for vascular development. a Effects of TRS and/or 4EHP on VEGF secretion in siTRS- and/or si4EHP-transfected cell lines. VEGF protein levels in the culture supernatant were determined by enzyme-linked immunosorbent assay (ELISA). b Effects of TRS and/or 4EHP on ANG secretion in siTRS- and/or si4EHP-transfected cell lines. ANG protein levels in the culture supernatant were determined by ELISA. c, d Effects of TRS and/or 4EHP on endothelial cell tube formation. Culture medium from WI-26 cells transiently transfected with siRNAs against TRS and/or 4EHP (or siCont) was used to treat HUVECs, which were subsequently plated on growth factor-reduced Matrigel to form capillary tubes (c). Total tube lengths in Supplementary Fig. 6a were measured using ImageJ (c). Migrated HUVECs were counted from three randomly selected fields (c). Culture medium from WI-26 cells transiently transfected with Myc-TRS WT or its 4EHP-binding-defective M60K mutant was used to treat HUVECs, which were subsequently plated on growth factor-reduced Matrigel to form capillary tubes (d). Total tube lengths in Supplementary Fig. 6f were measured using ImageJ (d). Migrated HUVECs were counted from three randomly selected fields (d). VEGF (10 ng mL^-1) served as a positive control. siCont, non-targeting control siRNA. *p < 0.05; **p < 0.01; ***p < 0.001; ****p < 0.0001 vs. control group. Values are means ± SD of three independent experiments (a−d). e−h TRS- and 4EHP-mediated translation initiation is critical for vascular development. TRS was suppressed using a morpholino (trs i6e7 MO) together with control (Cont) RNA, or reconstituted with WT or I55D mutant trs RNA at 52 h post-fertilization (e). 4EHP was suppressed using a morpholino (4ehp MO) together with Cont RNA, or reconstituted with WT 4ehp RNA (g). Quantitation and statistical analysis of the lengths and branching points of central arteries in the hindbrain of Tg (kdrl:EGFP) zebrafish embryos (f, h). Scale bar = 100 μM. The number of analyzed zebrafish embryos is shown in parentheses. ***p < 0.001; NS not significant vs. control group. Values are means ± SD. SF serum-free medium

Validation of TRS and 4EHP suppression in zebrafish. a Formation of stereotypical central arteries (CtAs) in the developing hindbrain of zebrafish embryos. (upper) Dorsal view bright-field image of the brain of zebrafish embryos captured at 52 h post-fertilization (hpf). The boxed region of the Tg(kdrl:EGFP) embryo is the area imaged using confocal microscopy. Scale bar = 100 m. (lower) Representative z-projected fluorescence image of a Tg(kdrl:EGFP) embryo at 52 hpf. Using this image, the length (red dotted lines) and branching points (yellow arrows) of CtA vessels were measured using ImageJ. Scale bar = 50 m. b Validation of TRS knock-down by RT-PCR using trs i6e7 MO. The location of the morpholino (MO) used to block the splicing of trs transcripts and primers used for RTPCR are indicated in the genomic structure of zebrafish trs. Injection of different amounts of MO (200 and 400 M) resulted in an additional single RT-PCR band due to aberrant splicing (band 1). Sequencing of the aberrant PCR band 1 revealed the 114 bp intron inclusion that leads to premature translational termination upon trs i6e7 MO injection. Cont MO, control MO. c Validation of zebrafish 4ehp knock-down by RTPCR. The locations of the MO used to block 4ehp splicing and primers used for RTPCR are indicated in the genomic structure of zebrafish 4ehp. Injection of different amounts of the MO shifted the RT-PCR band due to aberrant splicing (band 1). Sequencing of the aberrant PCR band 1 revealed the 111 bp intron inclusion. d Trunk vessel defects upon 4ehp knock-down. (upper) Trunk vessels of control- (left) and 4ehp MO-treated zebrafish (right) shown in lateral views. (lower) Angiogenic defects of intersegmental vessels (ISVs) in the developing trunk are more prevalent in 4ehpsuppressed fish than in controls (Cont) at 52 hpf. Scale bar = 200 m. Quantified data are shown in a bar graph. Numbers of analyzed zebrafish embryos are shown in bars. ***, p <0.001 vs. control group. Values are means  SD.

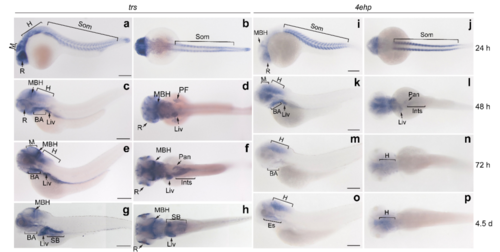

Spatiotemporal expression of zebrafish trs and 4ehp during embryogenesis by whole-mount RNA in situ hybridization. ah trs expression. ip 4ehp expression at 24 hpf (a, b, i, j), 48 hpf (c, d, k, l), 72 hpf (e, f, m, n) and 4.5 dpf (g, h, o, p). Lateral view (a, c, e, g, i, k, m, o). Dorsal view (b, d, f, h, j, l, n, p). All images are oriented with the rostral to the left. Both trs and 4ehp are expressed in the hindbrain and somites relevant to vascular defects upon morpholino knock-down during embryogenesis, in addition to several other developing tissues, indicating diverse roles. BA, branchial arches; H, hindbrain; Ints, intestine; Liv, liver; MBH, midbrain-hindbrain boundary; M, midbrain; Pan, pancreas; PF, pectoral fin; R, retina; Es: esophagus. Scale bars = 200 m.
