Temporal and spatial expression of fgfbp genes in zebrafish

Authors
Li, Y., Sun, S., Ding, Z., Yang, C., Zhang, G., Jiang, Q., Zou, Y.
Source
Full text @ Gene

Expression pattern of gene fgfbp1b in zebrafish embryo. Whole-mount in situ hybridization of fgfbp1b mRNA at 6hpf (A), 12hpf (B), 24hpf (C), 36hpf (D), 48hpf (E-E″), 60hpf (F and F′), and 72hpf (G and G′). (A–G′) Antisense probe. (H–J) Sense probe. (A, B, C, D, E, E′, F, G, and H–J) Lateral view. (E″, F′, and G′) Ventral view. (C′) Flat mount of 24hpf embryo, and dorsal view. Abbreviations: MHB, midbrain-hindbrain boundary; OE, oral epithelium; OV, otic vesicle; PP, pharyngeal pouches. Scale bar: 200 μm.

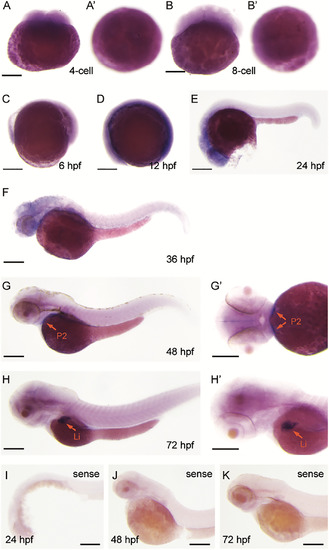

Expression pattern of gene fgfbp2a in zebrafish embryo. Whole-mount in situ hybridization of fgfbp2a mRNA at 4-cell stage (A and A′), 8-cell stage (B and B′), 6hpf (C), 12hpf (D), 24hpf (E), 36hpf (F), 48hpf (G and G′), and 72hpf (H and H′). (A-H′) Antisense probe. (I–K) Sense probe. (A, B, C, D, E, F, G, H, and I–K) Lateral view. (A′ and B′) Animal pole view. (G′) Ventral view. (H′) Dorsolateral view. Abbreviations: Li, liver; P2, the second pharyngeal arch. Scale bar: 200 μm.

EXPRESSION / LABELING:
Gene:
Fish:
Anatomical Terms:
Stage Range: 8-cell to Protruding-mouth

Expression pattern of gene fgfbp2b in zebrafish embryo. Whole-mount in situ hybridization of fgfbp2b mRNA at 4-cell stage (A and A′), 8-cell stage (B and B′), 6hpf (C), 12hpf (D), 24hpf (E), 36hpf (F and F′), 48hpf (G and G′), and 72hpf (H and H′). (A–H′) Antisense probe. (I–K) Sense probe. (A, B, C, D, E, F, G, H, and I–K) Lateral view. (A′ and B′) Animal pole view. (F′, G′, and H′) Ventral view. Abbreviations: BA, branchial arches; PF, pectoral fin. Scale bar: 200 μm.

EXPRESSION / LABELING:
Gene:
Fish:
Anatomical Terms:
Stage Range: 4-cell to Protruding-mouth

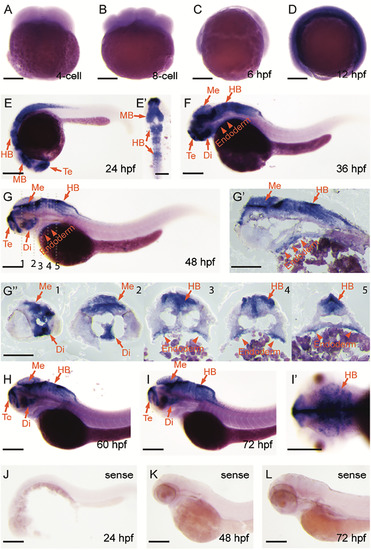

Expression pattern of gene fgfbp3 in zebrafish embryo. Whole-mount in situ hybridization of fgfbp3 mRNA at 4-cell stage (A), 8-cell stage (B), 6hpf (C), 12hpf (D), 24hpf (E and E′), 36hpf (F), 48hpf (G, G′, and G″), 60hpf (H), and 72hpf (I and I′). (A–I′) Antisense probe. (J–L) Sense probe. (A, B, C, D, E, F, G, H, I, and J–L) Lateral view. (E′) Flat mount of 24hpf embryo, and dorsal view. (G′) Longitudinal section of 48hpf embryos in panel (G), White dashed lines in panel (G) denote plane of cross section in panels (G″1–5). Abbreviations: Di, diencephalon; HB, hindbrain; MB, midbrain; Me, mesencephalon; Te, telencephalon. Scale bar: 200 μm.

EXPRESSION / LABELING:
Gene:
Fish:
Anatomical Terms:
Stage Range: 8-cell to Protruding-mouth
