Title

Enhancing the anti-glioma therapy of doxorubicin by honokiol with biodegradable self-assembling micelles through multiple evaluations

Authors
Gao, X., Yu, T., Xu, G., Guo, G., Liu, X., Hu, X., Wang, X., Liu, Y., Mao, Q., You, C., Zhou, L.
Source
Full text @ Sci. Rep.

Anti-angiogenic effects of HK-Dox/MPEG-PCL.

Normal embryos (A), embryos treated with empty MPEG-PCL (B), embryos treated with HK/MPEG-PCL micelles (C), embryos treated with Dox/MPEG-PCL micelles (D), and embryos treated with HK-Dox/MPEG-PCL micelles (E). Embryos treated with HK-Dox/MPEG-PCL micelles showed defective vascular formation of variable severity, with intersegmental vessels either sprouting abnormally or failing to form in comparison with control embryos.

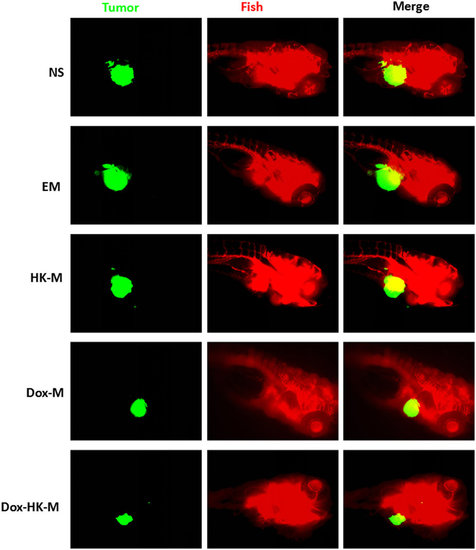

Antitumor effects of Dox-HK/MPEG-PCL in zebrafish tumor models.

Zebrafish were injected with 300 tumor cells into the perivitelline space using a Cell Tram Vario injector with a glass micropipette. At 24 h post-implantation, Tumors from zebrafish treated with NS, empty micelles (EM), HK-M, Dox-M, or Dox-HK-M micelles are shown. The Dox-HK/MPEG-PCL micelles inhibited tumor growth in zebrafish more effectively than other groups.
