Figure Caption

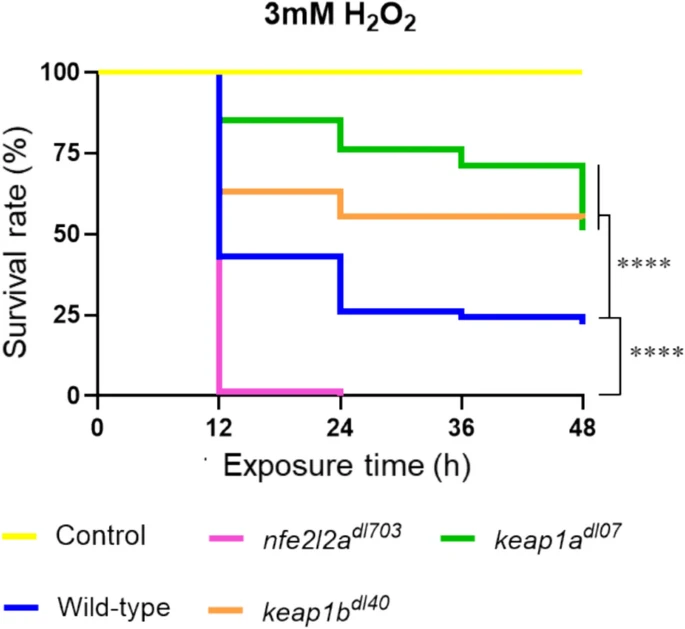

Fig. 2 Keap1 paralogs differentially regulate survival under oxidative stress. Survival curves of WT, nfe2l2a−/−, keap1a−/−, and keap1b−/− larvae exposed to 3 mM H2O2 for 48 h. Loss of either Keap1a or Keap1b confers significant protection against oxidative stress compared to wild-type. Conversely, loss of Nrf2a (nfe2l2a−/−) results in extreme hypersensitivity, confirming the essential protective role of this transcription factor. Data are representative results from n = 3 biological replicates. ****p < 0.0001 vs. control
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Transgenic. Res.
