Fig. 1

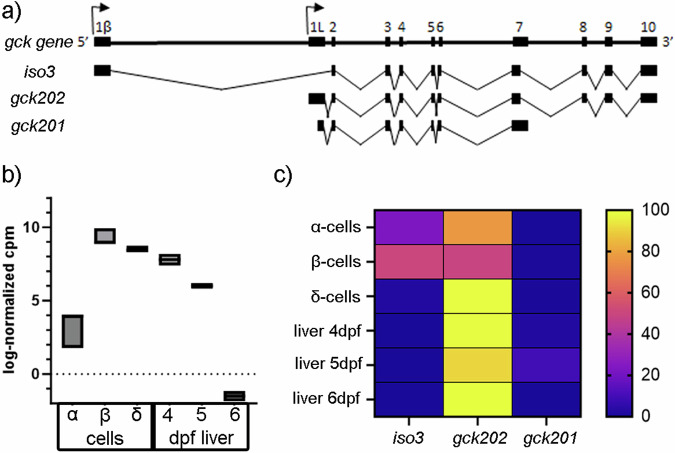

Fig. 1 Gck isoforms and their expression in the zebrafish.

a Genomic structure of the zebrafish gck gene and the three transcript isoforms. Exons are indicated by black rectangles and introns by lines, curved arrows represent the sites of transcription initiation. b Quantification of overall gck RNA counts from sorted adult zebrafish pancreatic cells (N = 3 biological replicates)²⁸ and embryonic hepatocytes (N = 2 biological replicates for each time point)²⁹. Plot shows Min to Max. c Heat map showing gck isoform expression in sorted zebrafish pancreatic α-, β- and δ-cells and embryonic hepatocytes at 4–6 dpf using the same published datasets^28,29 and the improved zebrafish transcriptome annotation of Lawson et al.²⁶.
