Figure 5.

ID: ZDB-IMAGE-231124-20
Publication: Celotto et al., 2023 - Single-cell RNA sequencing unravels the transcriptional network underlying zebrafish retina regeneration
All Figures: Figures for Celotto et al., 2023


Figure Caption

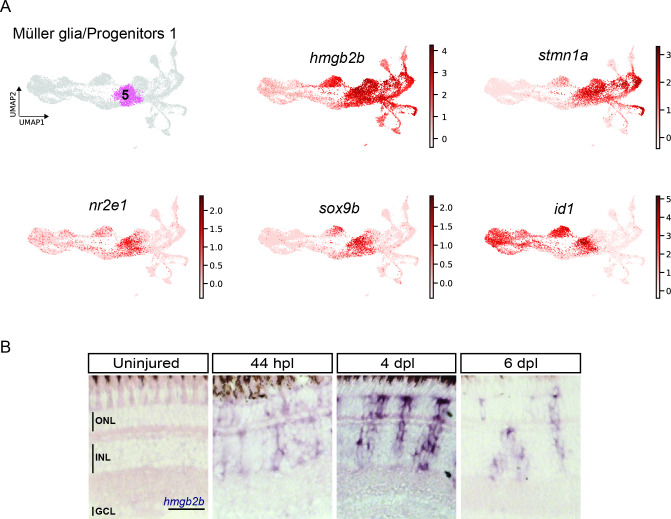

Figure 5. scRNAseq identifies a transient cell population with hybrid characteristics of reactive Müller glia and early progenitors in the light-lesioned retina.

(A) The progenitor 1 cluster (cluster 5) and the expression levels of hmgb2b, stmn1a, nr2e1 sox9b and id1. (B) Bright field microscopy images of chromogenic in situ hybridization detecting hmgb2b on retinal sections of uninjured control animals and at 44 hours post lesion (hpl), 4 days post lesion (dpl) and 6 dpl. N=3 fish per time point and uninjured controls. The position of the outer nuclear layer (ONL), inner nuclear layer (INL) and ganglion cell layer (GCL) is indicated in the uninjured sample. Scale bar: 30 µm.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Elife
