ZFIN Image: Uribe et al., 2023, Fig. 1


Figure Caption

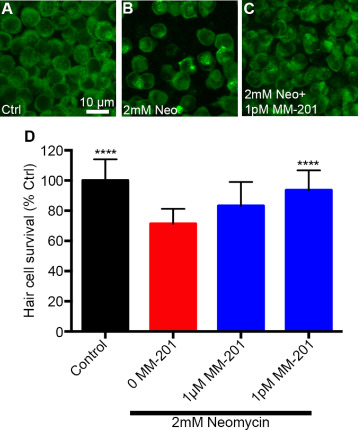

Fig. 1 MM-201 protects mouse utricular hair cells from neomycin exposure in vitro. (A-C) Representative images of utricular extrastriolar hair cell densities from explants treated with (A) control culture medium, (B) 2 mM neomycin, or (C) 2 mM neomycin plus 1 pM MM-201. Scale bar applies to all three images. (D) 1 pM of MM-201 robustly protects utricular hair cells from neomycin exposure whereas 1 µM does not exhibit significant protection (One-way ANOVA: F_3,38=10.68 p<0.0001). Asterisks indicate significant difference from 2 mM neomycin treated group (****p<0.001). N = 4–6 utricular explants per treatment, error bars represent + s.d.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Hearing Research, 434, Uribe, P.M., Hudson, A.M., Lockard, G., Jiang, M., Harding, J., Steyger, P.S., Coffin, A.B., Hepatocyte growth factor mimetic confers protection from aminoglycoside-induced hair cell death in vitro, 108786108786, Copyright (2023) with permission from Elsevier. Full text @ Hear. Res.
