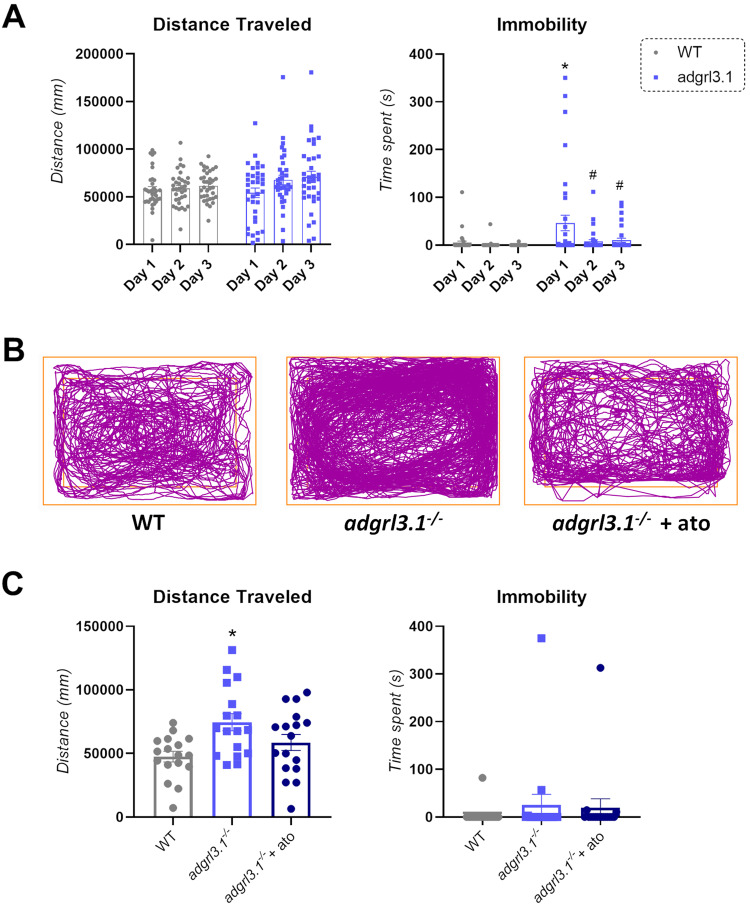

Fig. 2

Fig. 2 adgrl3.1^−/− zebrafish show increased locomotion after 3 days of habituation.

A Significant two-way RM ANOVA effect for habituation (F(1.995, 135.7) = 3.84; p* = 0.024) was observed for distance traveled, with no significant effects for interaction between factors (genotype*habituation; F (2, 136) = 1.66; p = 0.19) nor genotype (F (1, 68) = 1.40; p = 0.24). For immobility, a significant effect of genotype*habituation (F (2, 136) = 3.66; p* = 0.03), habituation (F (1.998, 81.51) = 5.92; p* = 0.013), and genotype (F (1, 68) = 10.23; p** = 0.002) was found. Post-hoc analyses showed that adgrl3.1^–/– has increased immobility during the first day of habituation compared to WT (p* = 0.018). adgrl3.1^−/− also showed a habituation to the novel environment by showing a decrease in their immobility during the second day (p* = 0.025) and third day (p* = 0.03) compared to the first day of habituation. B Representative tracking of a WT vs. adgrl3.1^−/− vs. adgrl3.1^−/− + ATO animal during the test day. C A significant ANOVA effect was found for distance traveled (F(2,48) = ^5.44; p** = 0.007) during the test day. Briefly, distance traveled was increased for adgrl3.1^−/− compared to WT animals (p** = 0.005) with no effect for adgrl3.1^−/− compared to adgrl3.1^−/− + ATO (p = 0.14). No effect for immobility was observed (p = 0.54). The data is represented as mean ± S.E.M.
