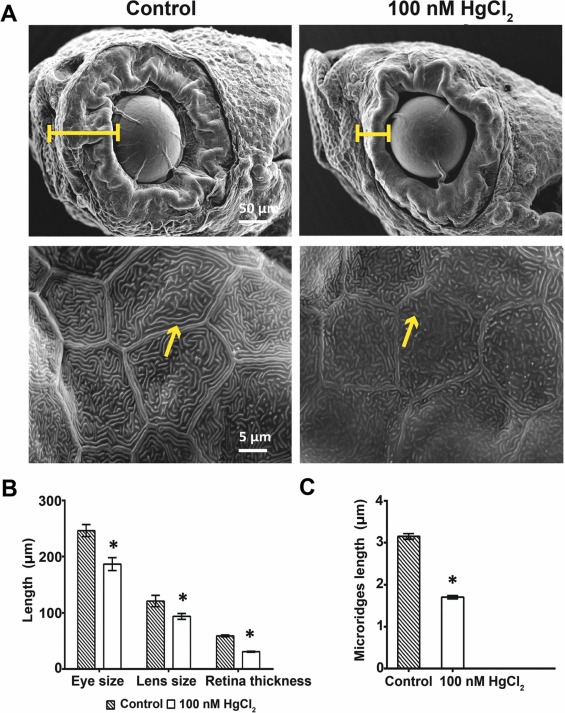

Fig. 3. Scanning electron microscopic (SEM) analyses of HgCl2–exposed zebrafish at 6 dpf. (A) Eye and lens size, retinal thickness (indicated by bar size), and microridges (arrow) in keratinocytes were examined. (B) Measurements of eye size, lens size, and retinal thickness. Embryonic exposure to HgCl2 caused a significant decreased in ocular structures. (C) Reduction in microridge length in keratinocytes in HgCl2–exposed zebrafish compared with control (mean ± SEM: *p < 0.05, n = 10 for each group).
