Figure Caption

Figure 5—figure supplement 2—source data 1. Cardiac arrest induced with <italic toggle='yes'>Co</italic>ChR and ChrimsonR.

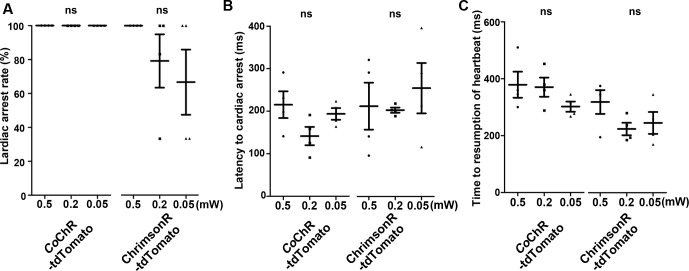

(A) Cardiac arrest rate. The heart area of 4-dpf Tg larvae expressing CoChR-tdTomato or ChrimsonR-tdTomato was irradiated with light (470 nm for CoChR; 520 nm for ChrimsonR) for 100 ms at a strength of 0.5, 0.2, or 0.05 mW/mm². Six consecutive stimulation trials were analyzed for four rhodopsin-expressing larvae of each Tg line. (B, C) Latency to cardiac arrest (B) and time to resumption of heartbeats (C) after light stimulation with optogenetic tools. One-way ANOVA with Tukey’s post hoc test was used for statistical analysis. ns: not significant. Means and SEMs are indicated.

Figure 5—figure supplement 2—source data 1.Data for <xref rid='fig5s2' ref-type='fig'>Figure 5—figure supplement 2</xref>, cardiac arrest induced with <italic toggle='yes'>Co</italic>ChR and ChrimsonR.
