ZFIN Image: Cai et al., 2021, Fig. 4


Figure Caption

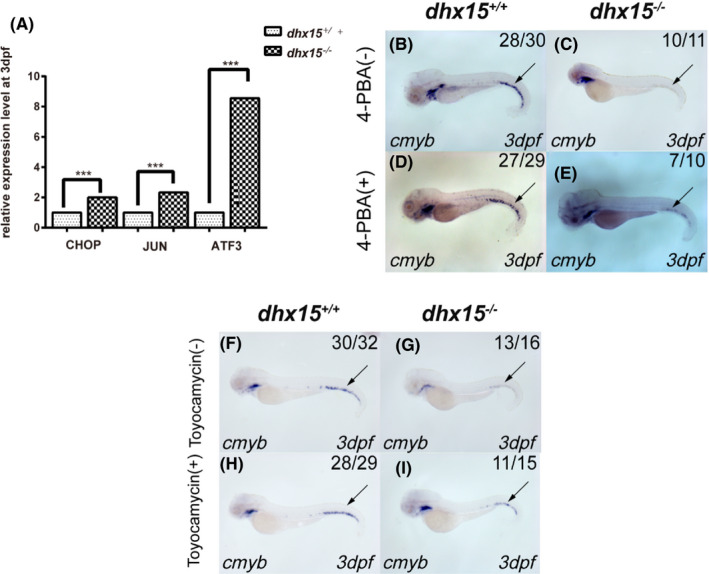

Fig. 4

UPR pathway mediates HSPC failure in dhx15^−/− zebrafish. A, qRT‐PCR analysis of CHOP, JUN, and ATF3 in dhx15^+/+ and dhx15^−/− zebrafish at 3 dpf. Each qRT‐PCR experiment was carried out in triplicates, and repeated at least three times. B‐E, WISH analysis of cmyb in dhx15^+/+ and dhx15^−/− zebrafish treated with 4‐PBA. P < .005, χ² test. F‐I, WISH analysis of cmyb in dhx15^+/+ and dhx15^−/− zebrafish treated with toyocamycin. P < .005, χ² test. Black arrow indicates caudal hematopoietic tissue. ***P < .0005. ATF3, activating transcription factor 3; dpf, days post fertilization; HSPC, hematopoietic stem/progenitor cell; qRT‐PCR, quantitative real‐time PCR; UPR, unfolded protein response pathway; WISH, whole‐mount in situ hybridization; 4‐PBA, 4‐phenylbutyric acid

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Cancer Sci.
