Figure 5—figure supplement 1.

ID: ZDB-IMAGE-201223-59
Source: Figures for Lee et al., 2020


Figure Caption

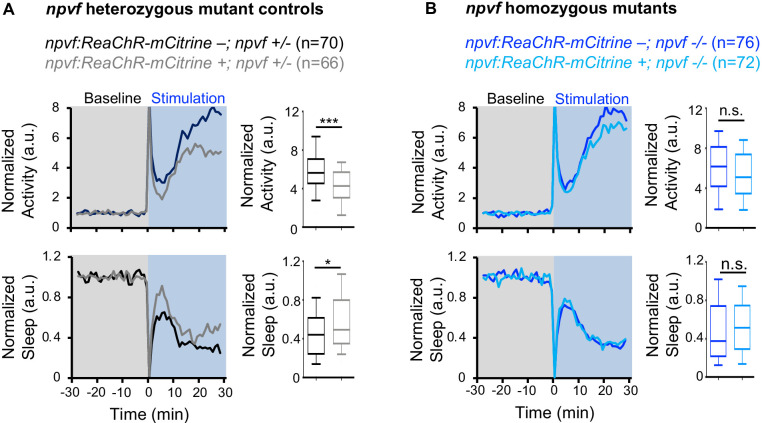

Figure 5—figure supplement 1. Sleep induced by optogenetic stimulation of NPVF neurons is abolished in <italic>npvf</italic> mutant animals.

Normalized locomotor activity (top) and sleep (bottom) of 5-dpf Tg(npvf:ReaChR-mCitrine) (gray and light blue) and non-transgenic sibling control (black and blue) animals before (Baseline) and during exposure to blue light (Stimulation) in npvf +/- (A) and npvf -/- (B) animals. Box plots quantify locomotor activity and sleep for each animal during optogenetic stimulation normalized to the baseline of all animals of the same genotype. Stimulation of NPVF neurons decreases locomotor activity and increases sleep compared to non-transgenic sibling controls in npvf +/- animals (A) but not in npvf -/- siblings (B). n = number of animals. ns p>0.05, *p<0.05, ***p<0.005, Mann-Whitney test.
