Fig. 5

ID
ZDB-IMAGE-200614-8
Genes
Source
Figures for Castro et al., 2020
Figure Caption

Fig. 5

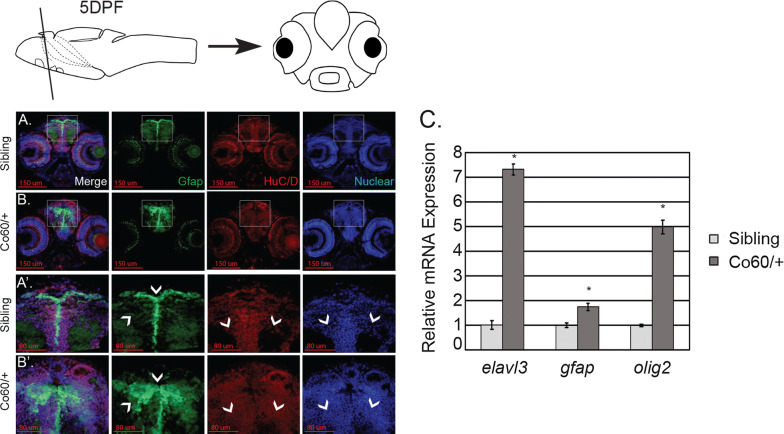

The hcfc1aco60/+ allele increases the expression of differentiation markers. a, a′, b and b′ Representative images of brain sections from Tg(gfap:EGFP) larvae harboring the hcfc1aco60/+ allele (Co60/+) at 5 days post fertilization (DPF) stained with Elavl3 (HuC/D) antibodies and Hoescht DNA content dye. 20× representatives of the entire brain (a, b) and 63× sub-regions (a′, b′) are shown. Wildtype siblings (N = 6) and hcfc1aco60/+ larvae (N = 6). Arrowheads indicate regions of increased expression/localization of protein. Arrowheads of Hoescht (Nuclear) images demonstrate regions with cell bodies. Top schematic demonstrates a 5 DPF larval brain with a line to demonstrate the region depicted below. c Quantitative real time PCR analysis of the expression of elavl3, gfap, and olig2 in siblings and hcfc1aco60/+ larvae (N = 8/group/biological replicate). Error bars represent standard error of the mean. *p < 0.05

Figure Data
