Figure Caption

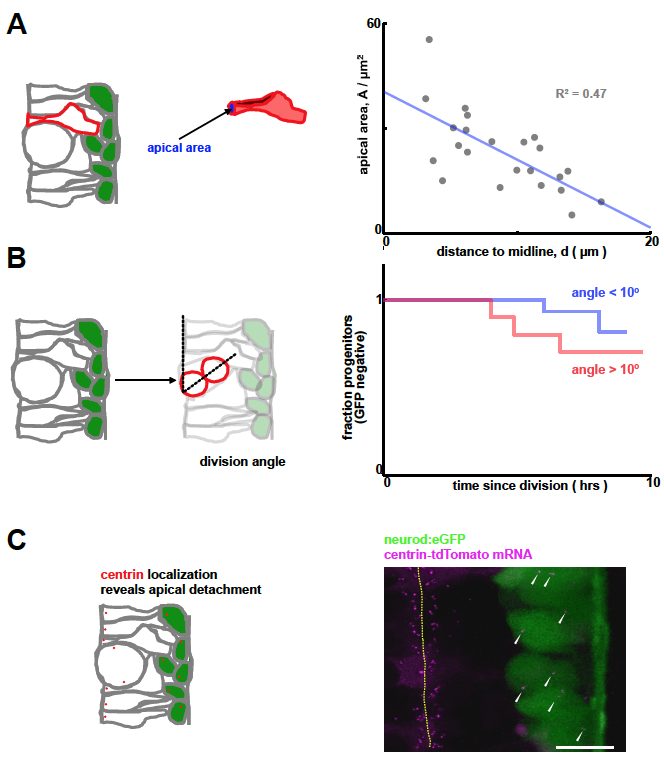

Fig. S4
A: Apical area negatively correlates with distance to midline at the single cell level.
B: Differentiation curves for parallel (angle < 10°) and oblique (angle > 10°) division events reveal a small, but not significant effect of division orientation on division rate (p = 0.3).
C: High resolution, high gain images of Tg(neurod:eGFP) transgenics reveal that some neurod+ cells retain a connection to the apical surface, demonstrating that apical detachment is not required for neurod expression.
