Fig. 3

ID
ZDB-IMAGE-130211-36
Genes
Source
Figures for Ma et al., 2012
Figure Caption

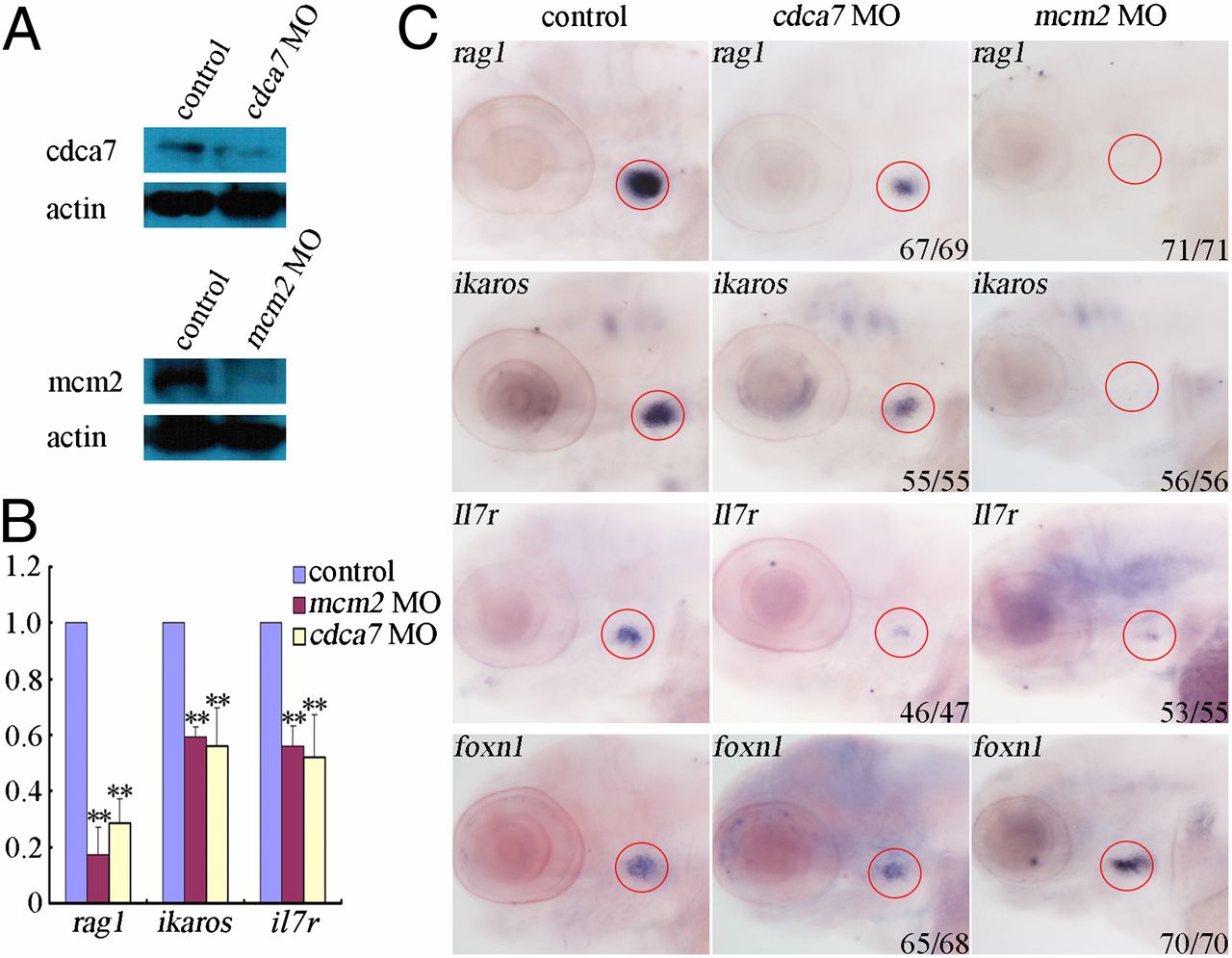

Fig. 3 T-cell development is impaired in zebrafish cdca7 and mcm2 morphants. (A) The protein expression of Cdca7 and Mcm2 in the zebrafish cdca7 and mcm2 morphants detected by using Western blot. (B) The expression of T-cell markers (rag1, il7r, and ikaros) in zebrafish cdca7 and mcm2 morphants by qRT-PCR (mean ± SD, Student’s t test, **P < 0.01, n = 3). (C) The expression of rag1, il7r, ikaros, and foxn1 in zebrafish cdca7 and mcm2 morphants by WISH. Anterior to the left and dorsal to the up; circles mark the thymus.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Proc. Natl. Acad. Sci. USA
