Fig. 6 Accurate and highly-sensitive algorithm performance on synthesized 3D membrane images.

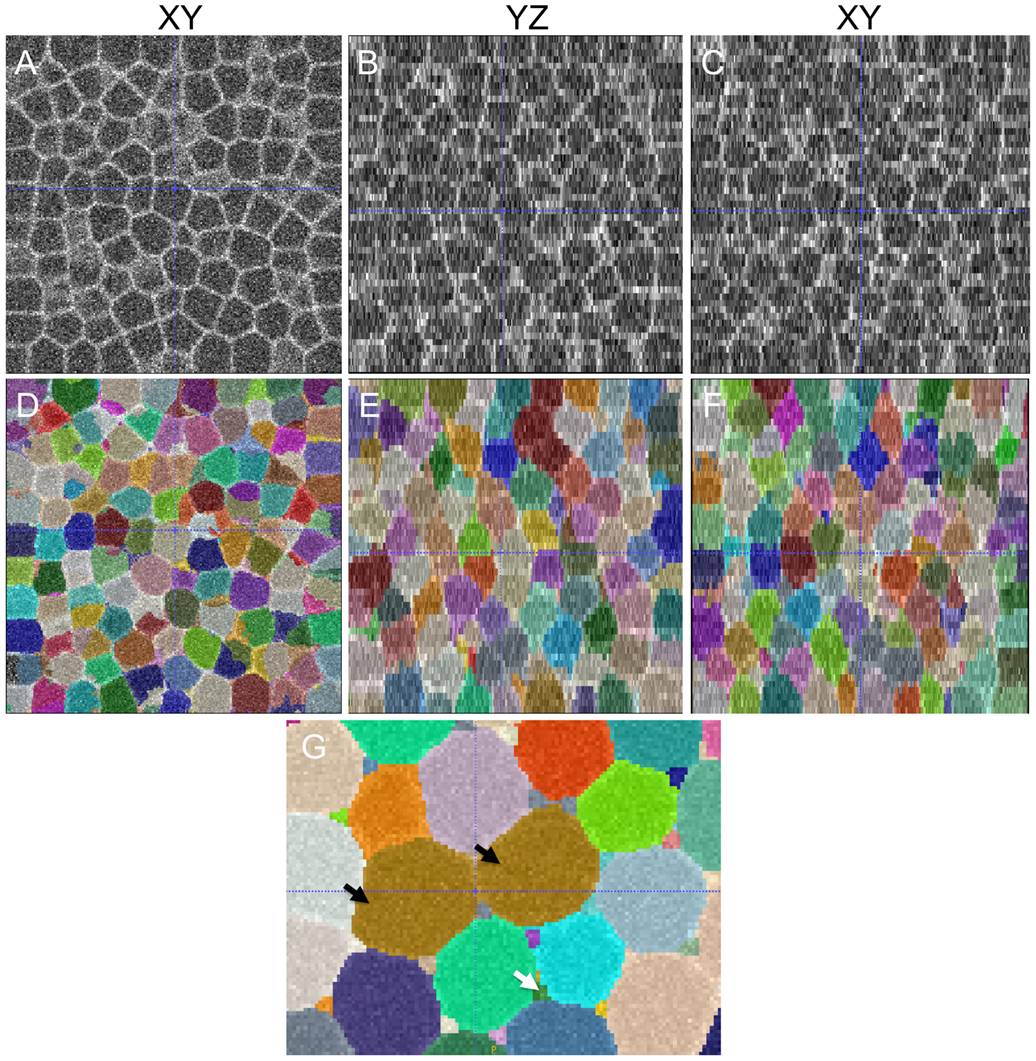

(A-C) Synthesized cell structures in 3D along XY, YZ and XZ sections with image noise added (Table 2). As in the case of real-world images, the lateral resolution significantly differs from the axial resolution. (D-F) Segmentations overlaid on the raw image with a 50% opacity function. (G) An example of under-segmentation (brown cells, black arrows) and over-segmentation (interstitial fragments, white arrows) in the image. The errors could be filtered out by size criteria.
