Figure Caption
Fig. 8

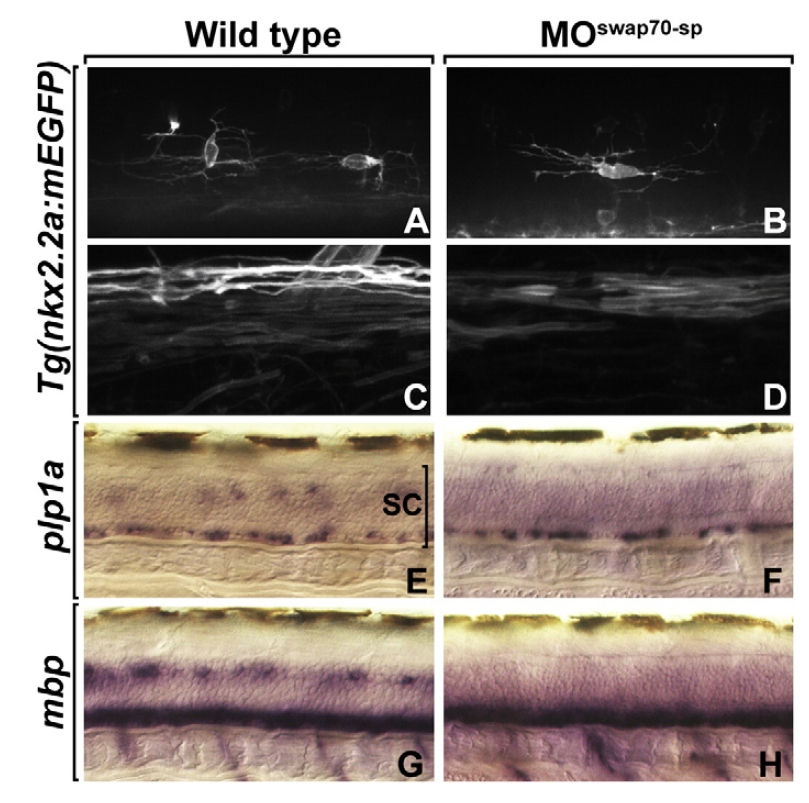

Swap70 loss-of-function does not affect OPC morphology and differentiation. Images of migrating OPCs (A, B) and wrapping oligodendrocytes (C, D) in living 3 dpf larvae visualized using a Tg(nkx2.2a:mEGFP) transgenic reporter. Membrane processes of OPCs and myelinating oligodendrocytes appear normal in MOswap70-sp-injected larvae. (E, F) plp1a mRNA expression at 3 dpf. (G, H) mbp mRNA expression at 3 dpf. Both plp1a and mbp appear to be expressed at normal levels in MOswap70-sp-injected larvae, although the number of cells expressing these genes in MO-injected larvae is fewer than in wild type.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Molecular and cellular neurosciences, 48(3), Takada, N., and Appel, B., swap70 Promotes neural precursor cell cycle exit and oligodendrocyte formation, 225-35, Copyright (2011) with permission from Elsevier. Full text @ Mol. Cell Neurosci.
