Figure Caption

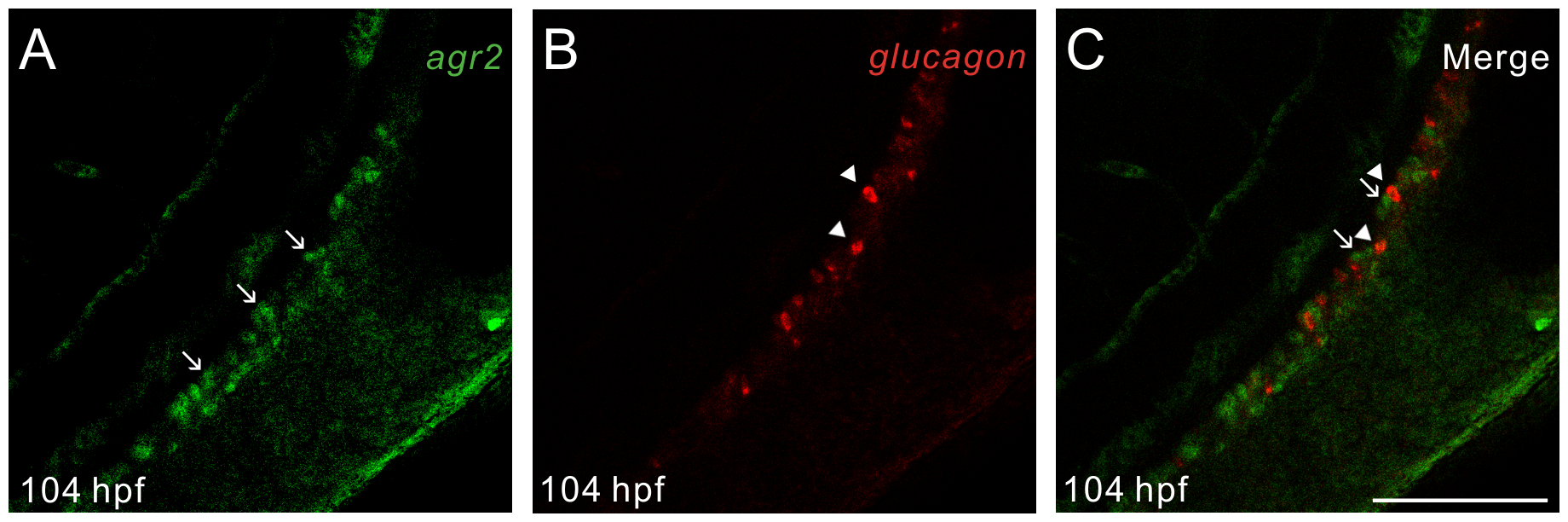

Fig. 1
Zebrafish agr2 is solely expressed in intestinal goblet cells.
Fluorescent whole-mount double in situ hybridization was conducted on 104-hours post fertilization (hpf) embryos using agr2 (green) and glucagon (red) as RNA probes. Confocal images were recorded using excitation/emission wavelengths of 494/517 nm for fluorescein (A) and 550/570 nm for cyanine 3 (B). Merged image is shown (C). Arrows indicate agr2-expressing goblet cells and arrowheads specify glucagon-expressing enteroendocrine cells. Scale bars represent 100 μm.
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ PLoS One
