Figure Caption

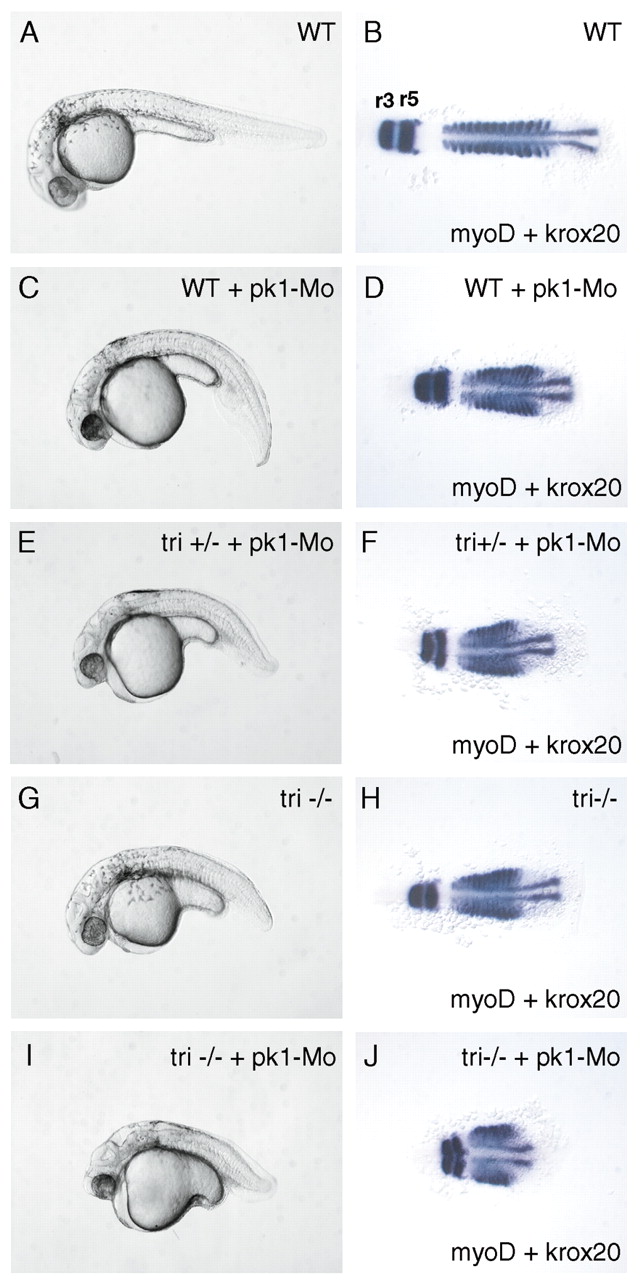

Fig. 6 pk1 and tri show a strong genetic interaction in regulating convergent extension. Lateral views of pharyngula-stage embryos (A,C,E,G,I) and dorsal views of 14-somite embryos (B,D,F,H,J) with anterior to the left. myoD expression shows the shape of the somites and krox20 the position of rhombomeres (r3 and r5) in (B,D,F,H,J). (A,B) Wild-type embryos. (C,D) Wild-type embryos injected with 3 ng of pk1-Mo. (E,F) tri heterozygous embryos injected with 3 ng of pk1-Mo. (G,H) tri homozygous embryos. (I,J) tri homozygous embryos injected with 3 ng of pk1-Mo.
