Fig. 7

ID
ZDB-IMAGE-051202-2
Genes
Source
Figures for Cox et al., 2005
Figure Caption

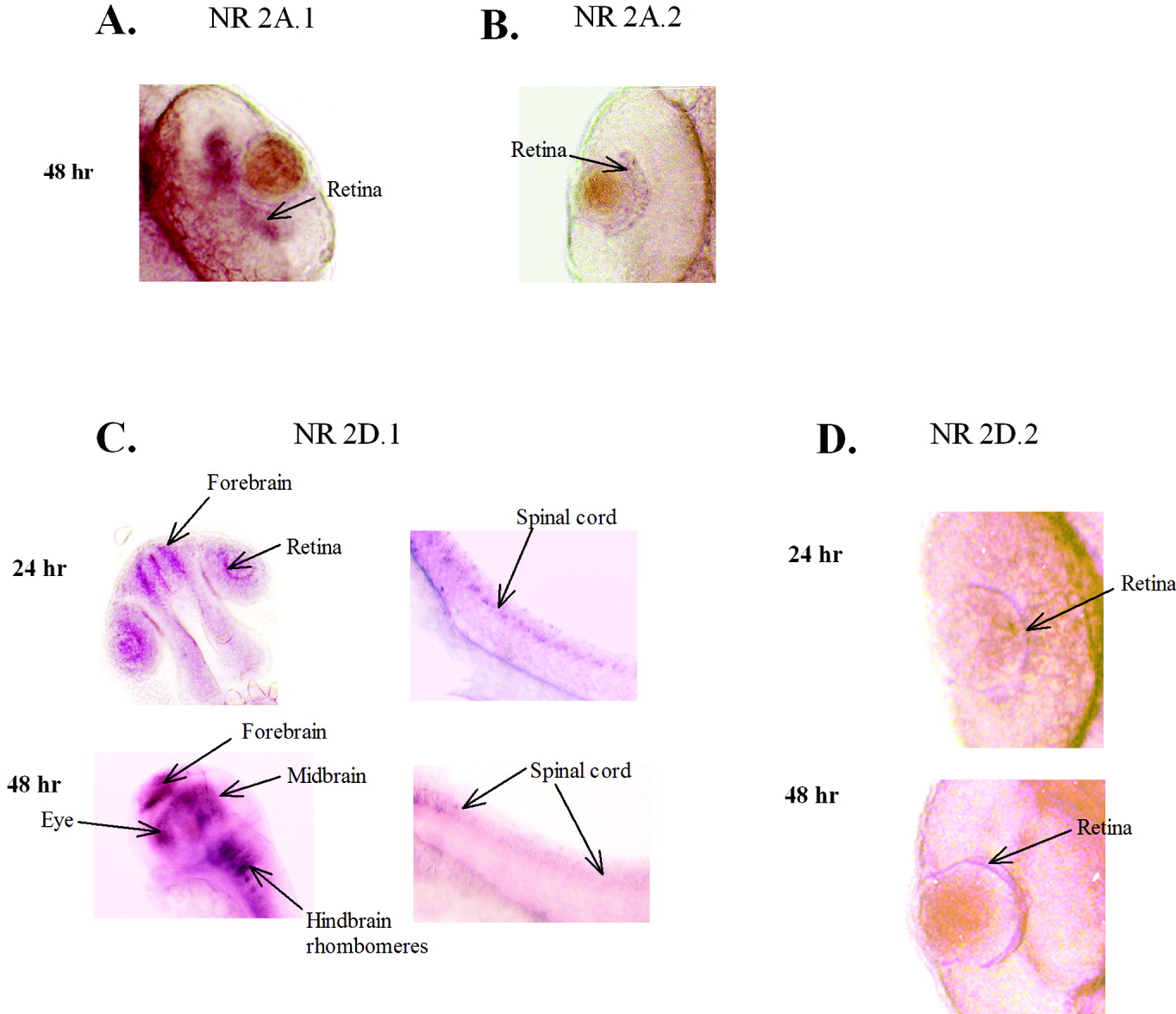

Fig. 7 A: Gene expression of NR2A.1 in the retina of 48 hpf zebrafish. This subunit is not expressed at 24 hours postfertilization (hpf). B:Expression of NR2A.2 in the retina of 48 hpf but not 24 hpf zebrafish. C:In situ hybridization pattern of the NR2D.1 RNA in 24- and 48-hour zebrafish. At 24 hpf, this subunit is found in the forebrain, retina, and spinal cord. The orientation of the spinal cord is rostral to the left, caudal to the right, dorsal at the top, and ventral at the bottom. At 48 hpf, the expression has increased in intensity and is found in the fore-, mid-, and hindbrain, and in the spinal cord. The photo of the head at 48 hpf is a dorsolateral view. This expression pattern overlaps that of NR1.1. D: NR2D.2 is detectable in the retina at 24 and 48 hpf but is not found in the brain or spinal cord. All images were cropped and sized in Photoshop 6.0.
