FIGURE

FIGURE 4

ID

ZDB-FIG-260129-38

Publication

Han et al., 2026 - Multiple susceptibility enhancer variants increasing ADD3 expression predisposes to biliary atresia risk

Other Figures

All Figure Page

Back to All Figure Page

FIGURE 4

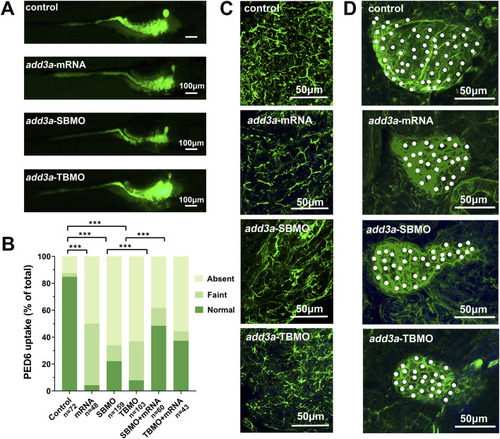

Knockdown or overexpression of add3a induces biliary dysfunction in zebrafish. (A) Lateral view of 5 dpf zebrafish larvae after ingestion of PED-6. The gallbladders of larvae injected with add3a mRNA or MOs were smaller compared to control embryos. (B) Quantitative analysis showed that the accumulation of PED-6 in the gallbladders of mRNA-injected larvae and morphants were significantly reduced compared to control larvae. Scale bar = 100 μm. Chi-square test was used. *P < 0.05; **P < 0.01; ***P < 0.001. (C) Confocal projection of 5 dpf larvae stained for cytokeratin 18, comparing control larvae, mRNA-injected larvae, and add3a morphants. The intrahepatic bile ducts in both mRNA-injected larvae and add3a morphants appeared sparser than in controls. n = 10 for each group. (D) Confocal projection of 5 dpf larvae stained for cytokeratin 18, showing that the gallbladders of both mRNA-injected larvae and add3a morphants were smaller than those of controls. n = 10 for each group. Gallbladder cells are indicated by white dots.

Expression Data

Antibody:	Ab8-krt18
Fish:	AB AB + MO2-add3a AB + MO4-add3a
Knockdown Reagents:	MO2-add3a MO4-add3a
Anatomical Terms:	gall bladder intrahepatic bile duct epithelial cell
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB + MO2-add3a AB + MO4-add3a
Knockdown Reagents:	MO2-add3a MO4-add3a
Observed In:	intrahepatic bile duct liver A2-type glycerophospholipase activity
Stage:	Day 5

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front Genet
