Figure 8

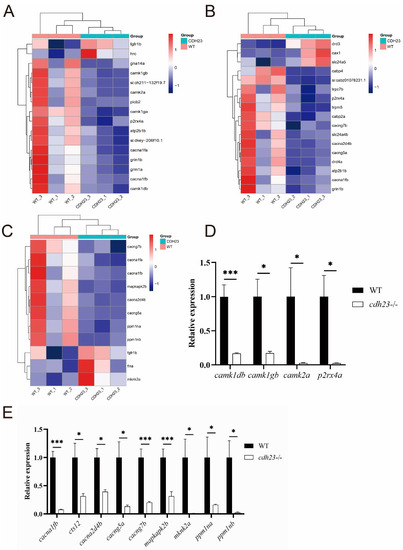

Effect of cdh23 on calcium signaling pathway and MAPK signaling pathway. (A) Cluster heatmap of differentially expressed genes in calcium signaling pathway. (B) Cluster heatmap of differentially expressed genes in calcium ion transmembrane transport. (C) Cluster heatmap of differentially expressed genes related to MAPK signaling pathway. (D,E) RT-qPCR expression analysis of genes related to calcium signaling pathway and MAPK signaling pathway was conducted. Results showed significant differences in gene expression levels (*: p value < 0.05; ***: p value < 0.001), indicating potential regulatory roles of these pathways in studied biological processes.

Expression Data

Genes:	cacna1fb cacna2d4b cacng5a cacng7b camk1db camk1gb camk2a cts12 mapkapk2b mknk2a p2rx4a ppm1na ppm1nb
Fish:	TU cdh23^{zf4078/zf4078} (TU)
Anatomical Term:	whole organism
Stage:	Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	cdh23^{zf4078/zf4078} (TU)
Observed In:	whole organism
Stage:	Protruding-mouth

Phenotype Detail
