FIGURE

Figure 1

ID

ZDB-FIG-250110-99

Publication

Rostad et al., 2024 - Accelerated Sarcopenia Phenotype in the DJ-1/Park7-Knockout Zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Figure 1

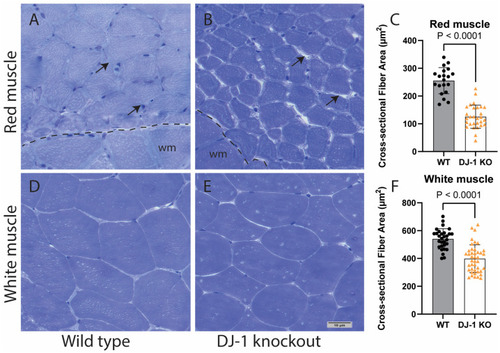

Loss of DJ-1 induces muscle atrophy in zebrafish. Semi-thin cross sections of red (A,B) and white (D,E) muscles from two-year-old male zebrafish were stained with Toluidine Blue (Scale bar 10 µm). Arrows point to extracellular space. White muscles appearing in A and B are labelled wm and separated from red muscle with dotted line. Cross sections were scanned and fibre cross-sectional area measured for red (C) and white (F) muscles. Data are the median ± sd (n = 29–42 DJ-KO and n = 20 WT). p-values were obtained using the Mann–Whitney U test.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	park7^{ub2000/ub2000} (AB/TU)
Observed In:	male organism fast muscle cell male organism skeletal muscle cell male organism slow muscle cell slow muscle cell
Stage:	Adult

Phenotype Detail
