FIGURE

Fig. 5

ID

ZDB-FIG-241204-5

Publication

Burrows et al., 2024 - RAN Translation of C9orf72-Related Dipeptide Repeat Proteins in Zebrafish Recapitulates Hallmarks of Amyotrophic Lateral Sclerosis and Identifies Hypothermia as a Therapeutic Strategy

Other Figures

All Figure Page

Back to All Figure Page

Fig. 5

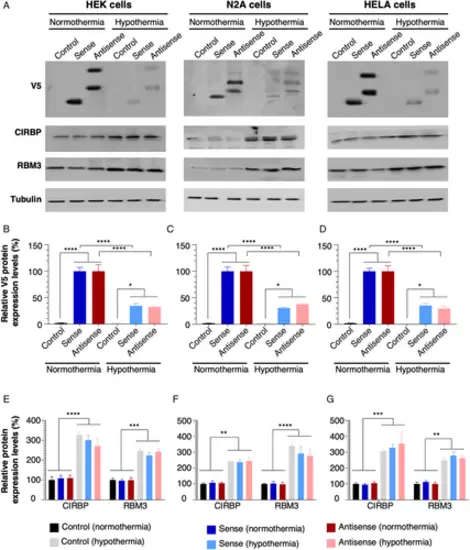

Hypothermic cooling reduces DPR expression in C9orf72-ALS/FTD cell models. (A) HEK293T, N2A and HeLa cells were transfected with control (C), sense (S), and antisense (AS) constructs and protein lysates were collected following 48 hours of hypothermic cooling (32°C). Western blot analysis and quantification of (B–D) V5-DPRs and (E–G) cold shock proteins CIRBP and RBM3. Data presented as mean ± SD. One-way ANOVA; *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001. ALS = amyotrophic lateral sclerosis; ANOVA = analysis of variance; CIRBP = cold-inducible RNA-binding protein; FTD = frontotemporal dementia; DPR = dipeptide repeat; SD = standard deviation. [Color figure can be viewed at www.annalsofneurology.org]

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Ann. Neurol.
