Fig. 6

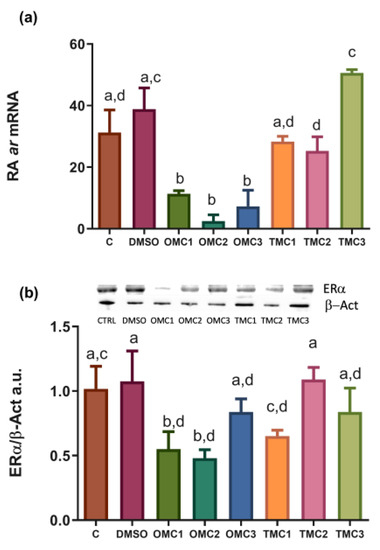

Expression profiles of steroid hormone receptors. (a) ar mRNA and (b) ERα protein levels in larvae exposed to the different experimental treatments. mRNA levels were normalized against rplp0 and rplp13 and used as reference genes. The ERα levels were normalized against β-actin (β-Act). Insert (b) shows representative ERα (65 KDa) and β-Act (42 KDa) blots. Data are shown as the mean ± SD. Different letters indicate statistically significant differences among experimental groups (p < 0.05). |
