Fig. 1

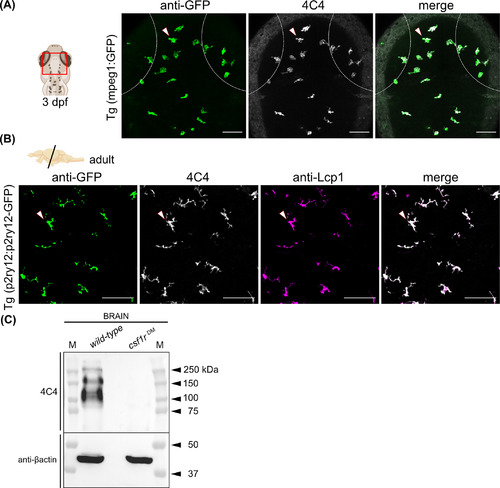

The 4C4 antibody labels microglial cells in the embryonic and adult zebrafish brain. (A) Dorsal view (red rectangle) of the optic tectum of a Tg(mpeg1:GFP) embryo at 3 dpf coimmunostained with the 4C4 antibody. Anti-GFP (green), 4C4 (gray), and merge of the two channels are shown. Dashed lines represent the eye edges. Images were taken using a 25× water-immersion objective. (B) Immunofluorescence on transversal brain sections (14 μm) from adult Tg(p2ry12-p2ry12:GFP) zebrafish co-immunostained with 4C4 and anti-Lcp1 (L-plastin) antibodies. Anti-GFP (green), 4C4 (gray), anti-Lcp1 (magenta), and merge of the three channels. Images were taken using a 20× objective. Images in (A) and (B) correspond to orthogonal projections and the white arrowheads point to microglial cells. Scale bars 50 μm. dpf, days postfertilization. (C) Detection of the 4C4 target protein by western blot. Protein lysate from a wild-type and a csf1rDM mutant adult brain. Βactin was used as a loading control. M, protein marker
|
Expression Data
| Antibodies: | |
|---|---|
| Fish: | |
| Anatomical Terms: | |
| Stage Range: | Protruding-mouth to Adult |
Expression Detail
Antibody Labeling
Phenotype Data
| Fish: | |
|---|---|
| Observed In: | |
| Stage: | Adult |
Phenotype Detail
